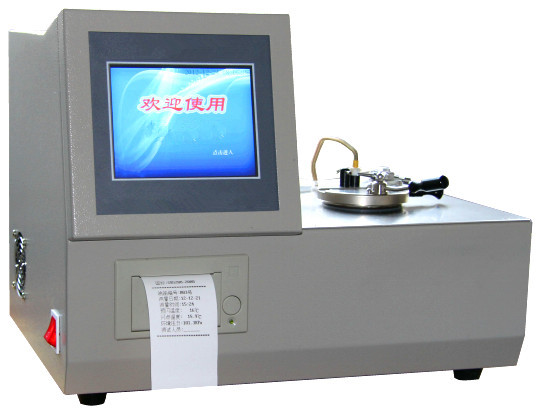

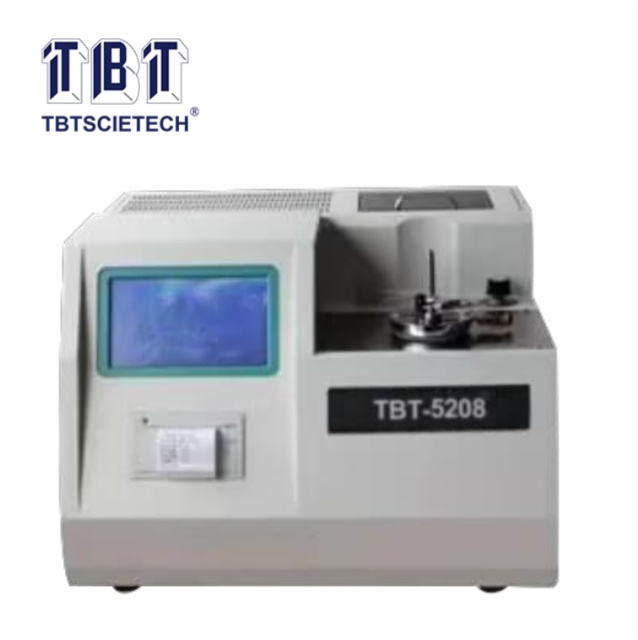

    Rapid Equilibrium Closed Up Flash Point Tester TBT-5208

    Rapid Equilibrium Closed Up Flash Point Tester
    Item Code:TBT-5208 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    1. Designed as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose of testing closed cup flash point rapidly and at low temperature.

    2. The instrument adopts semiconductor refrigeration device and external water cooling device. The size is small and cooling rate is rapid. Easy to operate.

    3. Test sample needed is less.2ml for each time（4ml for solid sample and semi-solid sample）

    4. The determination procedure is automatically completed except ignition. Test results can be printed automatically.



    Power supply

    AC(220±10%)V, 50Hz

    Flash point measuring range

    -30℃～50℃

    Precision of determination

    Absolute difference between two determinations is lower than 2℃(same operator)

    Absolute difference between two determinations is lower than 3℃(different operators)

    Temperature control precision

    ±0.5℃

    Igniting device

    Electric igniting gun

    Cooling mode

    Semiconductor(with cold water cycle at external connection)

    Maximum power consumption

    300W

    Relative humidity

    30%～80%

    Dimension

    370mm×280mm×280mm
