Cold Filter Plugging Point Filter Manufacturer

Description
Referring Standard
Features
Technical Specification

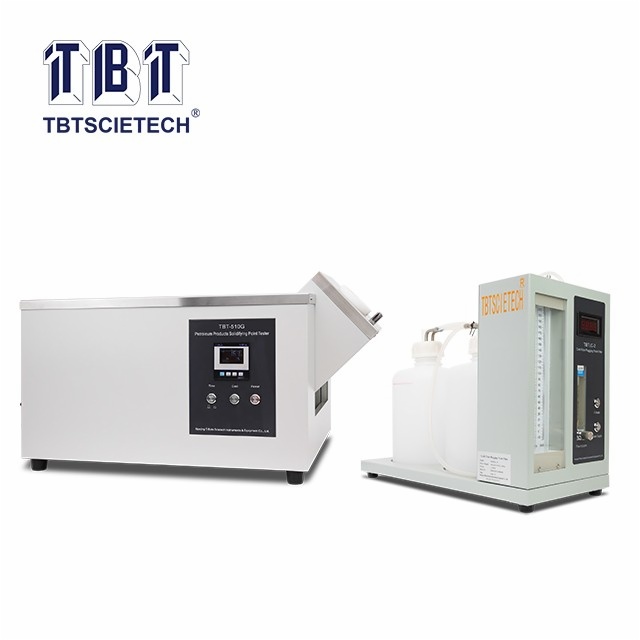

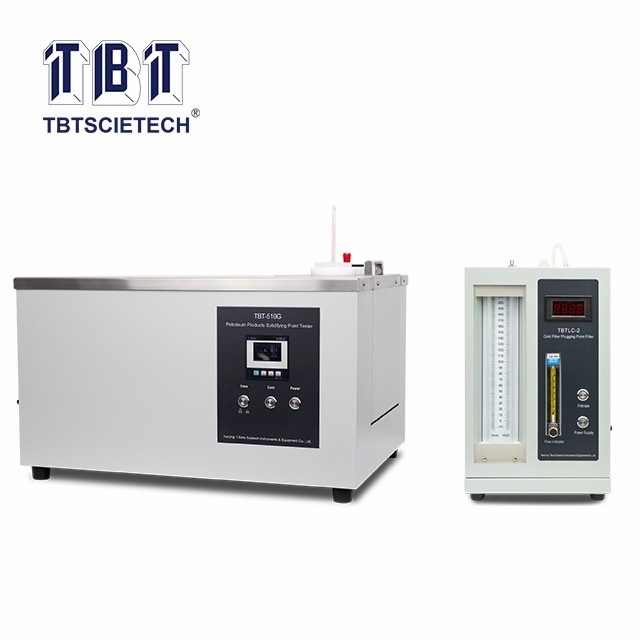

TBTLC-2 is designed referring to ASTM D6371 Standard Test Method for Cold Filter Plugging Point of Diesel and Heating Fuels. It can be used to determine cold filter plugging point of distillate fuels via equip with TBT-510G.

ASTM D6371

1.TBTLC-2 buzzer will sound after the completion of suction filtration of the instrument;

2.TBTLC-2 adopts digital display technology, easy to set data, stop timing when the timing time arrives.

3.TBT-510G material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature;

4.TBT-510G adopts special technology. No need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cooling baths is uniform and can reach -70℃ with ±0.5℃ precision;

5.TBT-510G adopts bench structure. The design is simple and easy to use. Operator can do solidifying point, pour point, cloud point test as long as buying this equipment.

TBTLC-2
Pumping pressure	1961Pa (200mmH₂O±1mmH₂O)
Test cup	There is a mark line at 45 ml of the cup
Filter assembly	Cooper material Size of hole on the filter sieve is 45 μm (330 meshes)
Working temperature & humidity	15~35℃, ≤85%RH
Size	550×250×400mm
Power supply	220V, 50Hz

Cold Filter Plugging Point Filter TBTLC-2
