Automatic Engine Oils Apparent Viscosity Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-6538 is designed referring to ASTM D5293 Standard Test Method for Apparent Viscosity of Engine Oils and Base Stocks Between -10℃ and -35℃ Using Cold-Cranking Simulator.

ASTM D5293

1.15 inch color LCD touch display the data;

2.It adopts the imported compressor, the cascade refrigeration technology with the fast cooling speed;

3.Imported motor drive with improved rotor and low torque test mode, high precision and good repeatability;

4.With the rotary encoder to detect the rotate speed and control current automatically to reduce the manual operating error;

5.The parameters of all standard oils can be editable and stored,it can save the 1000 groups of history test data and it’s convenient to check and reuse;

6.Configuration with minniprinter to automatically print the report after the test.

Cold bath temperature control range	Ambient ~ -60℃
Cold bath temperature control accuracy	±0.5℃
Stator temperature control accuracy	±0.05℃
Viscosity measurement range	1500mPa•s ~27000mPa•s
Working temperature & humidity	10℃~40℃, ≤85%RH
Maximum power consumption	2500W
Size	1450×500×620mm(LWH)
Power supply	220V, 50Hz

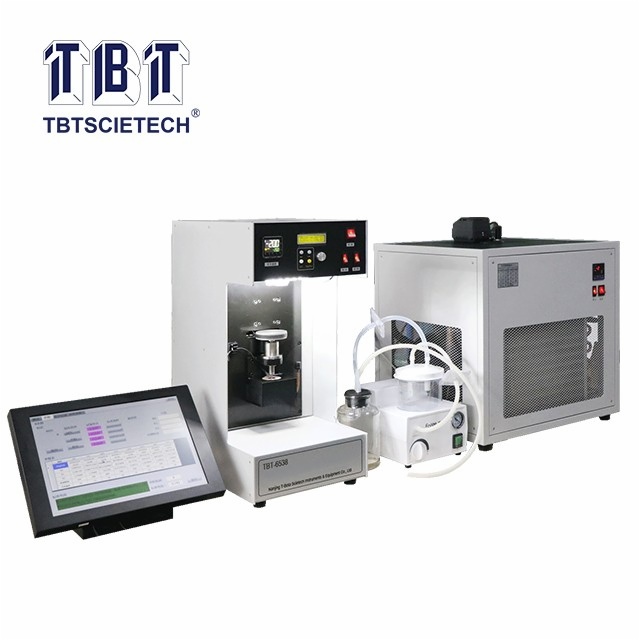

Automatic Engine Oils Apparent Viscosity Tester TBT-6538
