Coulometric Salt Content Analyzer Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-0536 is designed referring to ASRM D3230 Standard Test Method for Salts in Crude Oil (Electrometric Method). It adopts the micro-coulometry technology for analysis, it’s the latest products by the computer control. It can determine salt content and Inorganic chloride in crude petroleum and products, heavy oil, residual oil, and various industrial water or drainage water.

ASTM D3230

1. Micro-coulometry technology for easy operation;

2. The titration cell and filtering units are both specially designed. It has automatic determination and good performance;

3. Self-developed operation and test software. It has good accuracy and high precision;

4. Wide application scope. High sensitivity and good adaptation;

5. It needs less sample. Only 1g for each test. The test time is 5 minutes for each sample.

Titration method	Coulometric titration
End point detection	Automatically judge the end point by the indication—reference electrode
Display unit	ngNaCl/ul
Sensitivity	0.1ngNaCl/ul
Measuring range	0.2~10000ngNaCl/ul
Capacity of titration cell	145ml
Test time	Less than 5mins per sample (The time use for sample processing is not included)
Working temperature & humidity	10~40℃, ≤85%RH
Size	350x280x178mm
Weight	8kg
Power supply	220V, 50Hz

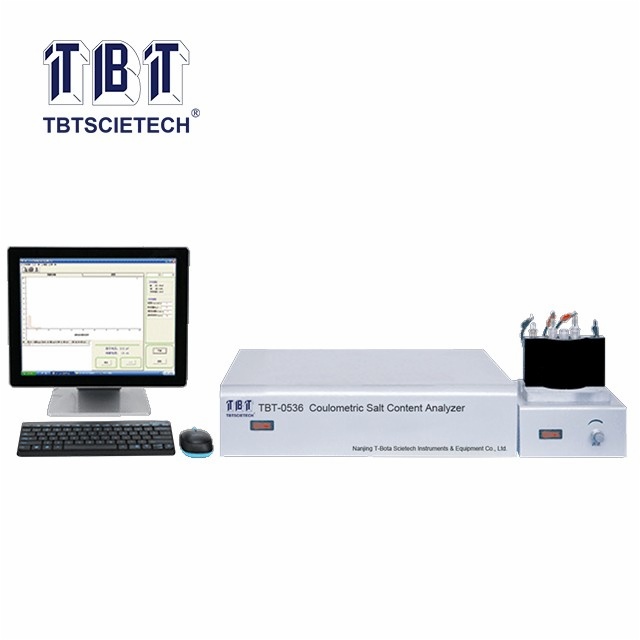

Coulometric Salt Content Analyzer TBT-0536
