Automatic Distillation Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-6536D is designed and made as per standards ASTM D86, ASTM D850, ASTM D1078.

It is used to determine the distillation characteristics of motor gasoline, aviation gasoline, jet fuel, diesel oil, distillate fuel, naphtha, and some solvents which have special boiling points.

It is a new instrument which is advanced and easy-operated. High cost performance.

ASTM D86, ASTM D850, ASTM D1078

1. Built-in microcomputer. Advanced IPC technology. 12.1 inch touch screen for easy operation;

2. Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically;

3. It displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge whether the indications can meet the standards’ requirements or not in real time;

4. Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability;

5. The distillation procedures can be added as per customer’s need and different oil samples;

6. It has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the barometric pressure difference;

7. It can calculate the vapor temperature by inputting the residue amount after the test;

8. There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow pipe will make the water leve in the bath normally;

9. It equips an automatic fire-extinguishing device to make the test safe.

Temperature range of bath	0~60℃
Temperature control precision of bath	±0.5℃
Temperature range of receiving chamber	0~60℃
Temperature control precision of receiving chamber	±1℃
Distillation heater	1000W, 24V
Distillate liquid detection	0~100mL, resolution 0.01mL
Distillate liquid detection precision	≤0.1mL
Maximum power consumption	2500W
Working temperature & humidity	10~35℃; ≤80%RH
Power supply	220V, 50Hz

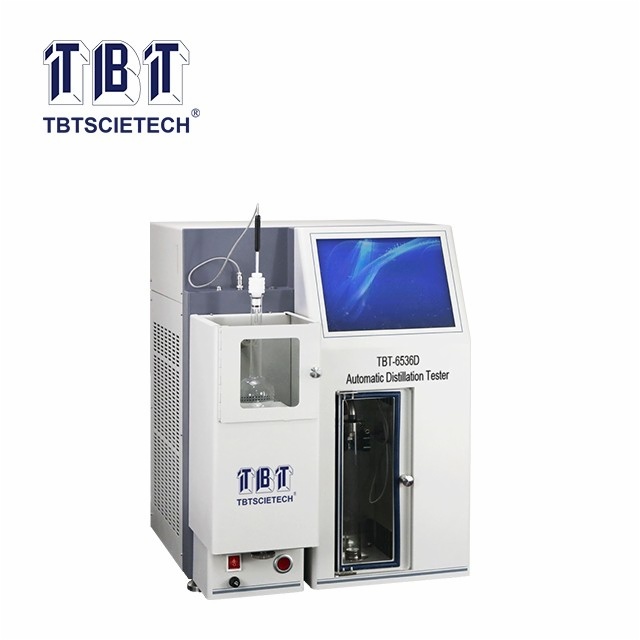

Automatic Distillation Tester TBT-6536D
