Dynamic Cone Penetration (DPT) Manufacturer

Description
Referring Standard
Features
Technical Specification

Introduction:

Cone Dynamic Cone Penetration (DPT) is used to hit a certain hammer to press the cone probe into soil, to establish the soil stratification according to the different impedance.

This equipment is convenient for operation & high efficient in wide application range.

Main features:

It can perform continuous penetration, for those kinds of soil difficult-to-sample such as sand, silt, gravel etc., and for soil difficult to be penetrated by CPT, DCP is a very effective exploration and test method.

Specification:

Probe diameter (mm):	74
Probe cross-sectional area (c㎡):	43
Cone angle (º):	60
Weight of falling weight (kg):	63.5±0.5
Falling distance (cm):	76±2
Energy index ηd:	15-30
Sounding tube diameter (mm):	40
Hammering rate (min):	15-30
Large penetration depth (m):	12-16

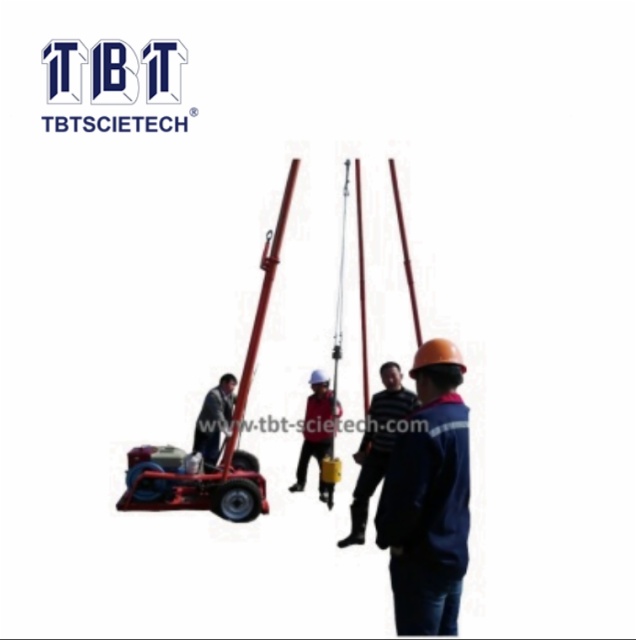

Dynamic Cone Penetration (DPT) TBTDCP-2A
