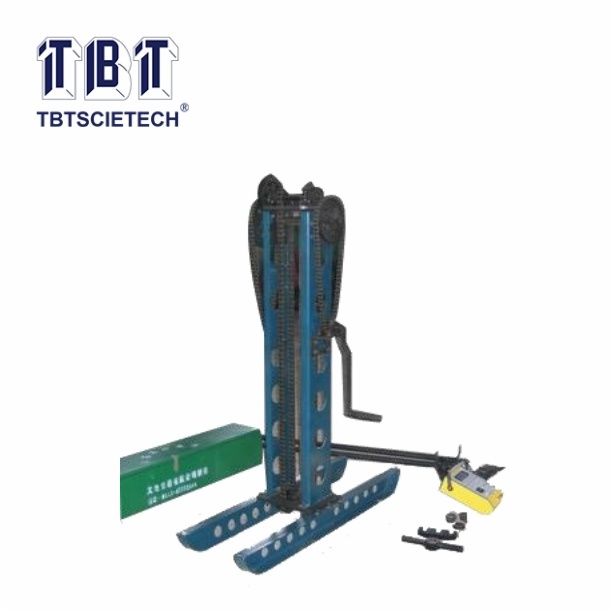

    Static Penetration Testing Apparatus CLD-3

    Static Penetration Testing Apparatus
    Item Code:CLD-3 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Rated penetration force(KN)

    30

    Pulling force(KN)

    40

    Penetration speed(m/min)

    0.8

    Pulling speed(m/min)

    1-2

    Driving force equipped

    manual hand rotation

    Probe rod diameter (mm)

    28

    Probe angle

    60

    Probe area

    10cm2

    Earth anchor length

    0.8m

    Anchor piece diameter

    120mm

    Penetration method

    manual hand rotation

    Pulling method

    manual hand rotation

    Data collection method

    automatic recording

    Weight

    200kg
