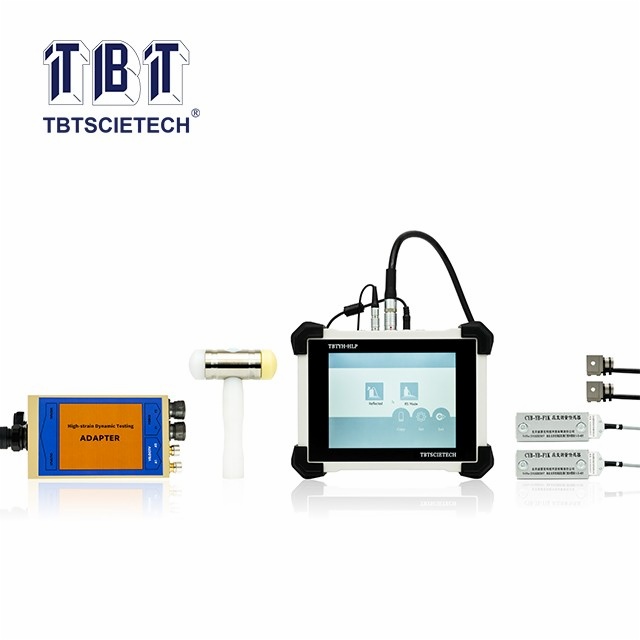

Pile Driving Analyzer(High Strain and Low Strain) Manufacturer

1.High-strain single blow, multiple blows, monitoring mode, pile driving monitoring, hammer force measurement, multiple modes combined.

2.The original signal, velocity, stress, displacement, Case results, and frequency domain are displayed in split screens with clear organization.

3.Pile driving monitoring at speeds of up to 110 blows per minute, with rapid and reasonable internal force analysis.

4.Pile driving monitoring can provide real-time monitoring of blow force, overall internal forces, bearing capacity, integrity, stroke, penetration, and energy ratio, simultaneously meeting the monitoring requirements for both concrete piles and steel piles.

5.Minimum 25.6μs sampling interval, can meet the integrity testing of high-strain model piles.

6.2k record length, duration exceeding 500ms, can simultaneously meet the requirements of RLT and DLT tests.

1.Industry-first, using an integrated screen. Visible in sunlight, with better performance than new smartphones. Currently, the only one of its kind in the industry.

2.The "full-overlay display method" is implemented to vividly observe the consistency and stability of signals.

3.Low-strain RS mode and PIT mode can be operated on the same machine.

4.Split-screen display of velocity, displacement, stress, velocity-displacement, Case curve, allowing a clear view of changes in each signal.

5.Automatically implement single blow, multiple blows, monitoring mode. Real-time monitoring of the deformation of strain sensors.

6.The fastest pile driving monitoring can reach up to 120 blows per minute.

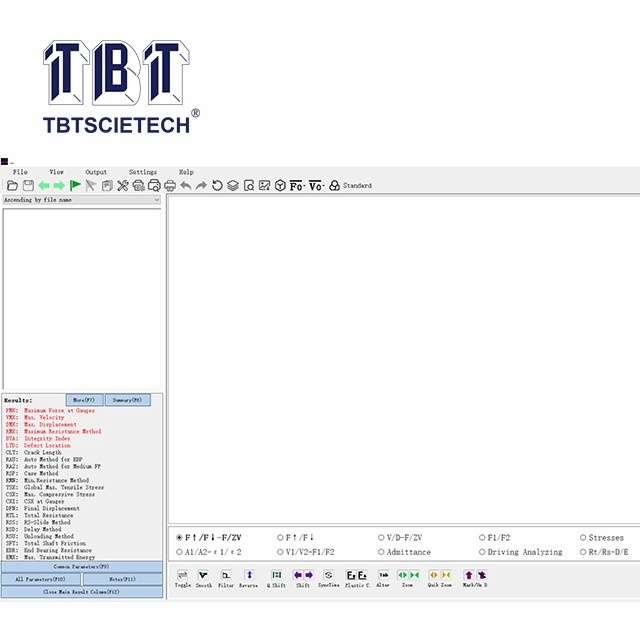

7.Case analysis can be realized on site, and F-ZV curve and traveling wave curve can be displayed.

8.It adopts 24-bit high-precision low-noise ADC with built-in digital filter, featuring high signal-to-noise ratio, high reliability and low noise.

9.It adopts a capacitive touchscreen and there is no need for a stylus, making operation more convenient and better suited to the operator's habits.

10.The data is stored in memory and backed up by a memory card, making the data storage extensive and more secure and reliable.

11.Aluminum-magnesium alloy casing, imported connectors, higher overall strength, and stronger anti-interference performance.

12.The built-in lithium battery DC power supply can work for more than 8 hours.

13.The data collected on site is uploaded in real time through Bluetooth.

System	WINCE operating system. A8 industrial-grade kernel.
System	The system operates at a frequency of 1GHz with 512MB of memory.
Sampling parameters	Number of Channels	6 (2 high strain acceleration channels, 2 stress channels; 1 low strain acceleration channel and 1 speed channel)
	AD Bits	24-bits
	Sampling Interval	Low-strain: Continuously adjustable from 0.8μs to 52428μs, with a step size of 0.8μs High-strain: Three grades of 48μs, 96μs, and 144μs
	Sample Length	IK, 2K
	Magnification Times	X1, X2, X4, X8
	Trigger Mode	Channel trigger, steady-state trigger
	Bandwidth	High-strain: Acceleration: 1Hz to 10kHz (≤5%), Strain: 0-5kHz (≤5%)
	Bandwidth	Low-strain: Acceleration: 1Hz to 10kHz (≤2%), Velocity: 0-10kHz (≤2%)
	Sampling Precision	±2%
	System Noise	<0.2mV(rms)
	Time Error	<0.5%
	Amplitude Non-linearity	<10%
Display Characteristics	Touch Screen	Capacitive type
	Size	8.4-inch optical fully laminated
	Resolution	800X600
	Display Mode	High-contrast and clear display
	Curve Comparison	Display in the same box for automatic comparison
Interface	Storage Method	Saved in a memory and backed up automatically in a card
	Output Interface	USB, Bluetooth, USB flash drive for data transfer
	Input Interface	Capacitive touchscreen, standard USB keyboard and mouse
Power supply	Built-in Battery	11.1V/7Ah rechargeable lithium battery, work continuously more than 8 hours
Power supply	External Power Supply	DC15V4A charger
Specifications	Volume and Weight	25519050mm, 1.7kg
Working environment	Operating Temperature	-10~50℃
Working environment	Working Humidity	<90%

Pile Driving Analyzer(High Strain and Low Strain) TBTYH-HLP
