Sand Replacement Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

The apparatus is used to on-site test the compaction of the base or subbase, sand and gravel pavement and subgrade structure to evaluate the compaction quality of the structural layer.

Specification：

Items			Size S	Size M	Size L
Sand tank	Tank	diameter（mm）	100	150	200
	Tank	Volumn（cm³）	2121	4771	8482
	Flowing hole	diameter（mm）	10	15	20
Calibrating tank		Inner diameter（mm）	100	150	200
Calibrating tank		Outer diameter（mm）	150	200	250
Base plate	Square base	side（mm）	350	400	450
	Square base	depth（mm）	40	50	60
	Middle hole	diameter（mm）	100	150	200
	Thickness	thickness（mm）	≥1.0	≥1.0	≥1.0

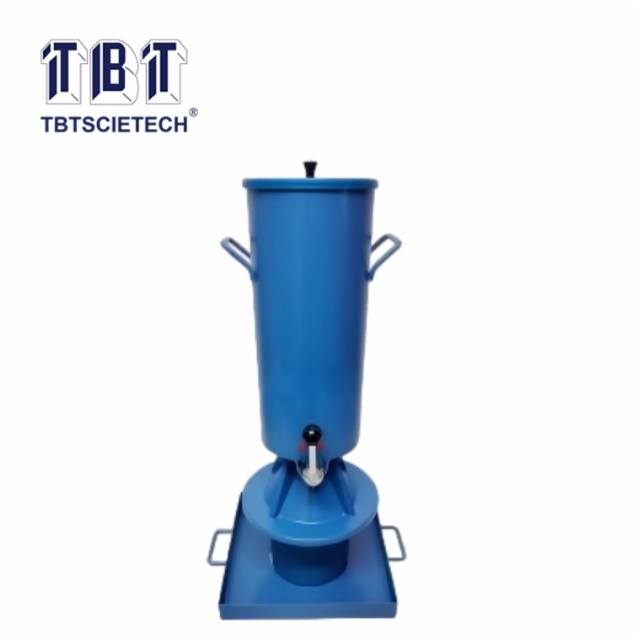

Sand Replacement Tester TBT0921
