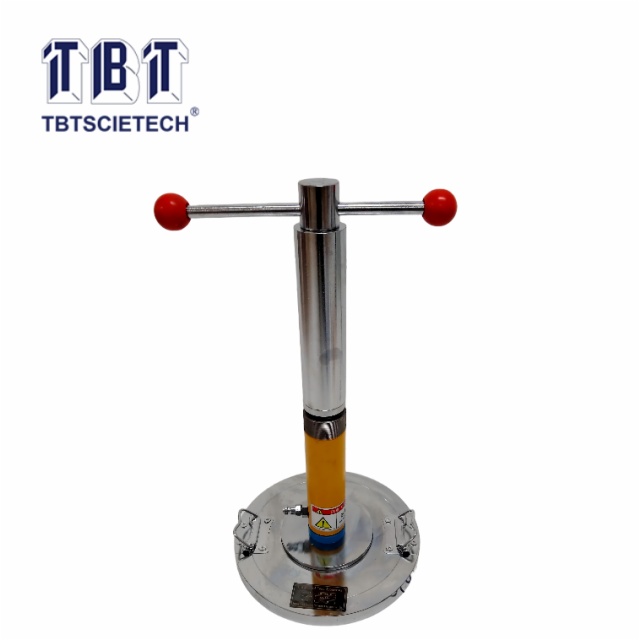

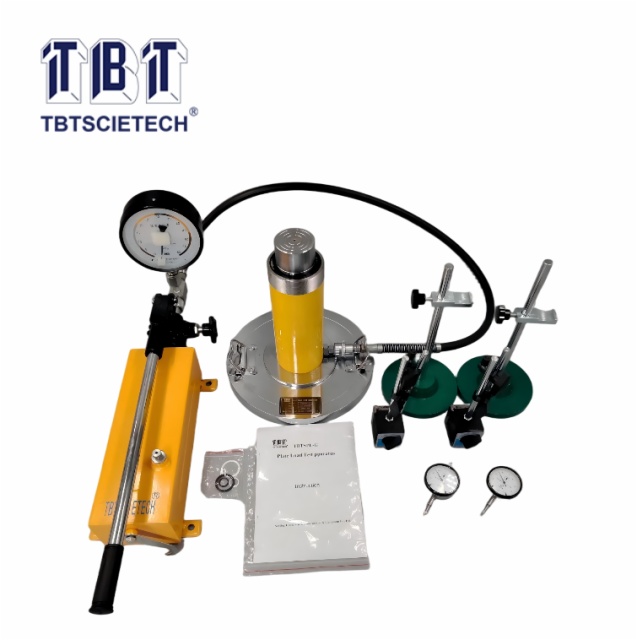

    Plate Bearing test apparatus with dial gauges, analogue measuring TBTSPL-G

    • Plate Bearing test apparatus with dial gauges, analogue measuring
    • Plate Bearing test apparatus with dial gauges, analogue measuring
    • Plate Bearing test apparatus with dial gauges, analogue measuring
    Plate Bearing test apparatus with dial gauges, analogue measuring
    Plate Bearing test apparatus with dial gauges, analogue measuring
    Plate Bearing test apparatus with dial gauges, analogue measuring
    Item Code:TBTSPL-G Features:TBTSPL-G Plate bearing test is used in earthworks and soil foundations to evaluate the composition and consequent deformability of the soil. This gives an indication of the total load capacity of the soil under test. Also used in road construction engineering.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Technical specification:

    Load plate diameter:  300mm
    the loading energy range of the jack:  0-10Ton
    Jack stroke:  125mm
    Bridge span:  3000mm

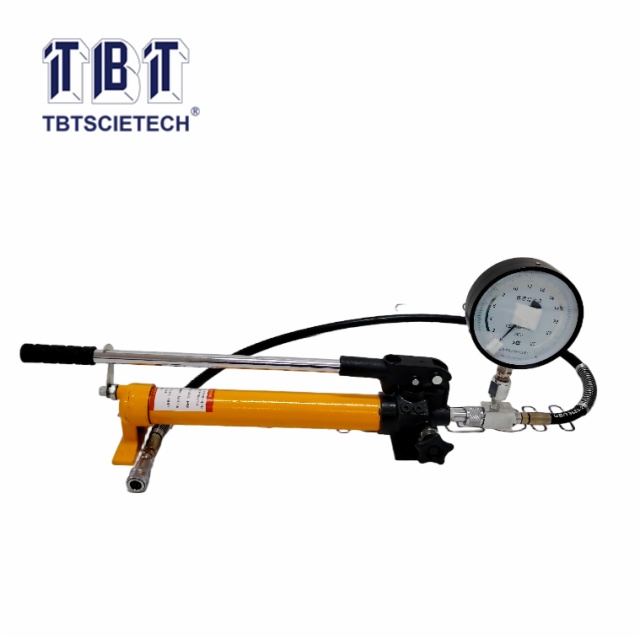

    Manual oil pump rated pressure: 60Mpa
    Pressure test range: 0--25 Mpa
    Shift test range:  0-10mm
    Use mechanical oil No. 46/68, suitable for ambient temperature  0°C--45°C
