Fiber Optic Gyroscope Inclinometer Manufacturer

JTL-50FT fiber optic gyroscope Inclinometer is using high-precision fiber optic gyroscope as a measuring element of the new inclinometer instrument to measure borehole inclination and azimuth for magnetic mines and iron sleeve specially designed drill inclinometer hole for angle magnetic mines and iron casing vertical or directional bore and high-precision measuring azimuth; widely used in metallurgy, engineering, hydrology, oil, coal, geological borehole logging areas.

The instrument is made of the ground control box, inclinometer probe, shock full flow guide shoe and laptop computers and other components, designed to be portable; equipped with a special software to display and print the borehole inclinometer data tables, drawing drilling plan, section, side projection and spatial trajectories.

Measuring range
Angle	0 ° ~ 50 °
Azimuth	0 ° ~ 360 °
The high-side tool face angle	0 ° ~ 360 °
Orientation tool face angle	0 ° ~ 360 °
Measurement accuracy
Angle measurement error	≤ ± 0.2 °
Azimuth measurement error	≤ ± 2 ° (angle 3 ° ~ 50 °)
Azimuth measurement error	≤ ± 3 ° (angle 1 ° ~ 3 °)
The high-side tool face angle	≤ ± 1 ° (angle 3 ° ~ 90 °)
Orientation tool face angle	≤ ± 2 ° (angle 0 ° ~ 50 °)
Measuring depth	1500 m (temperature <60 ℃)
Pressure	25MPa
Measurement	measuring point
Power	Single phase 220V ± 10% / 50HZ
Power consumption	about 75W
Environmental temperature	-10 ℃ ~ 55 ℃
Instrument cable	four-core cable (resistance <85Ω / 100m)
Dimensions and weight	Φ54mm × 1680 mm (can be customized Φ50mm × 1680 mm)
Dimensions and weight	Ground control box: 370mm × 160mm × 290 mm / 6kg.

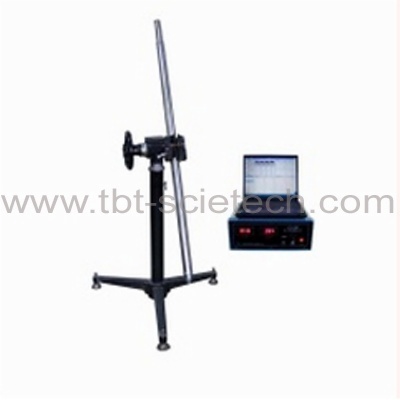

Fiber Optic Gyroscope Inclinometer JTL-50FT
