    Marshall Compactor (High Quality Type) TBTEMC-1A

    Marshall Compactor (High Quality Type)
    Item Code:TBTEMC-1A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

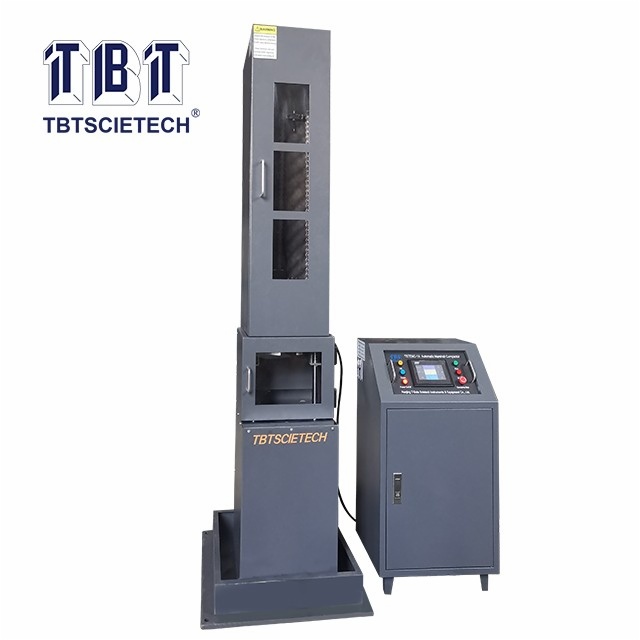

    TBTEMC-1A is made for preparing specimen which used to do Marshall stability test.

    It is a standard compactor for forming cylinder specimen of Φ101.6mm×63.5mm or Φ152.4mm×95.3mm used in standard Marshall test and indirect tensile test (split method).





    Hammer weight(small)

    4536g±9g

    Hammer weight(big)

    10210g±10g

    Falling of Hammer

    457mm±1.5mm

    Mould(small)

    D101.6mm×63.5mm

    Mould(big)

    D152.4mm×95.3mm

    Compaction speed

    (60±5)times/min

    Compaction time

    (0～999)times

    Wooden compaction base

    457mm×200mm×200mm

    Power supply

    220VAC 50HZ

    Motor power

    370W

    Dimension

    1740mm×540mm×540mm

    Weight

    Around 180kg
