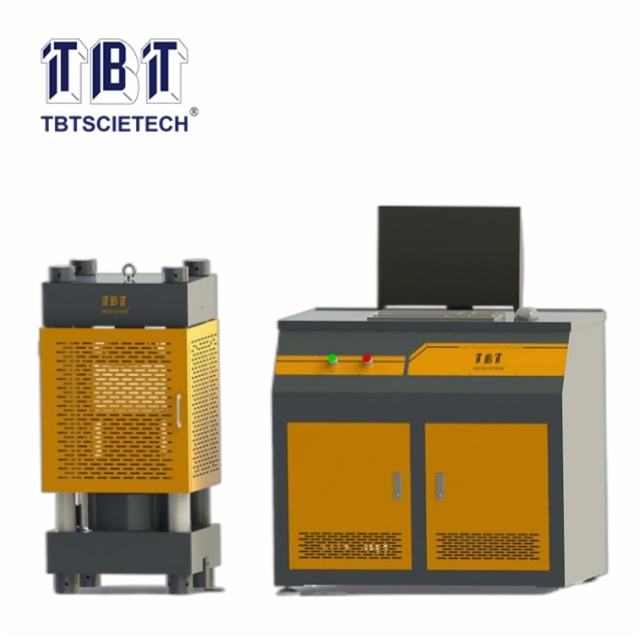

    Compression Testing Machine with PC Control& Auto Loading TYA-2000A

    Compression Testing Machine with PC Control& Auto Loading
    Item Code:TYA-2000A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    The testing machine is designed for testing the compressive strength of cement mortar in accrodence with the Standard GB17671-99 “the test regulation of cement mortar strength”. Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.

    It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed







    Maximum Capacity:

    2000 kN

     Measuring range:

    0-2000 kN

    Relative Error

    ±1%

    Loading rate:

    0-10.0 kN/s

    Max. Vertical clearance between platen

    320 mm

    Maximum travel of piston

    40 mm

    Diameter of piston

    Ф250 mm

    Rated pressure of oil pump

    40Mpa

    Power supply

    220VAC 750W







    1. Oil Pump

    2. Motor

    3. O-ring

    4. Hand wheel
