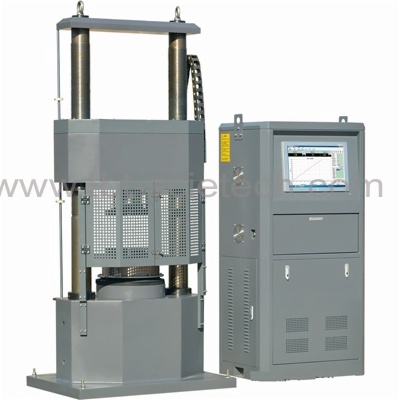

    Compression Testing Machine with PC&Servo Control TBTCTM-2000PC2

    Compression Testing Machine with PC&Servo Control
    Item Code:TBTCTM-2000PC2 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    The testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed .

    Model

    TBTCTM-2000PC2

    Max capacity(KN)

    2000

    Indication accuracy

    1(0.5)

    Piston control method

    Two-way

    Sensor type

    Spoke load

    Space adjustment method

    Electric adjustment

    Max Compression space（mm）

    600

    Piston stroke(mm)

    200

    Compression platen dimensions(mm)

    Φ300

    Host dimentions(mm)

    1050*750*2350

    Demensions of Oil source cabinet(mm)

    800*600*1600

    Power(KW)

    3.5

    Total Weight(kg)

    3200
