Compression and Flextural Testing Machine with digital display Manufacturer

Description
Main Specifications
Accessories

The testing machine is designed for testing the flexural strength of concrete specimen and compressive strength of mortar specimen; it is electro-hydraulically powered and the pressure applied on the specimen can be digital displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed.

Model:	TBTCTM-100C	TBTCTM-300C
Maximum Capacity	100KN	300KN
Relative Error	±1%	±1%
Rated pressure of oil pump	30Mpa	25Mpa
Diameter of bearer	Ф30 mm	Ф30 mm
Max. distance between upper and lower bearers	165 mm	165 mm
Central distance between upper bearers	150 mm	150 mm
Central distance between lower bearers	450 mm	450 mm
Platen dimension	Ф118 mm	Ф118 mm
Max. Vertical clearance between platen	180 mm	180 mm
Diameter of piston and maximum travel of piston	Ф125 mm x 80 mm	Ф125 mm x 80 mm

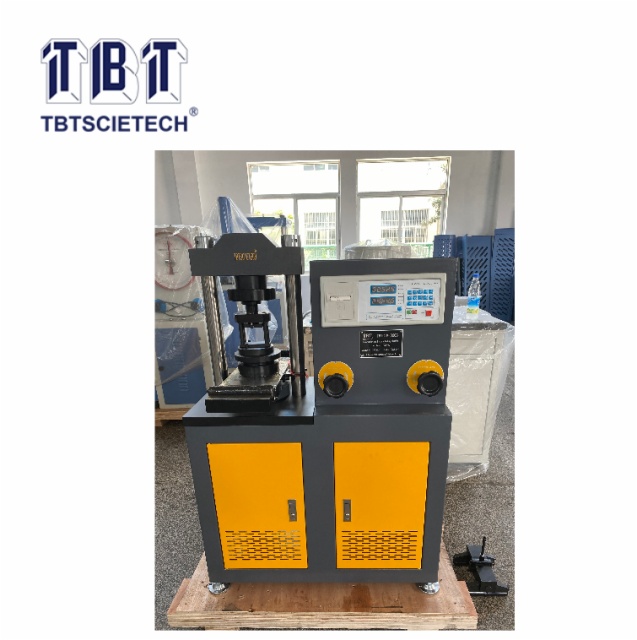

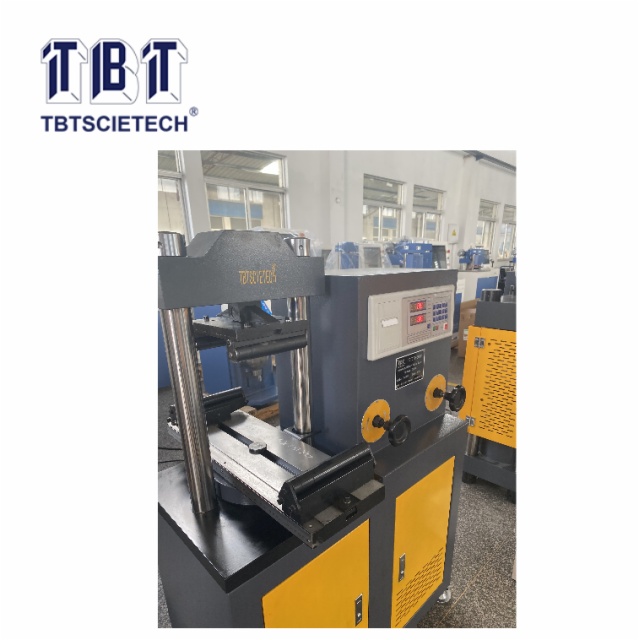

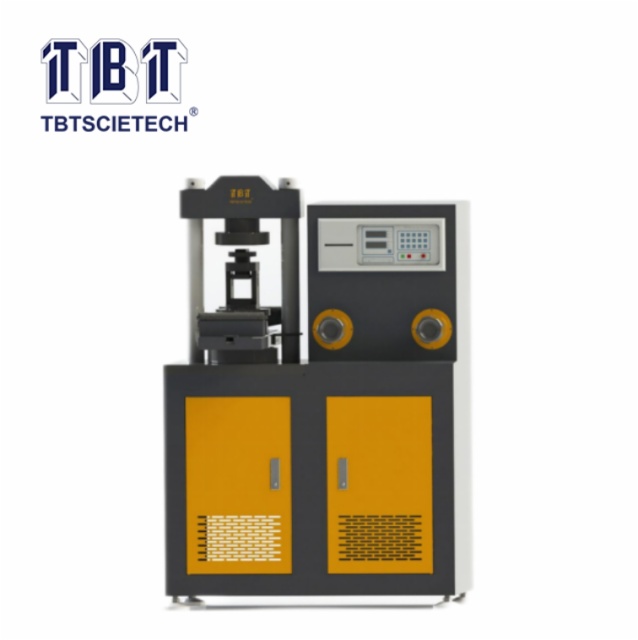

Compression and Flextural Testing Machine with digital display TBTCTM-100C/TBTCTM-300C
