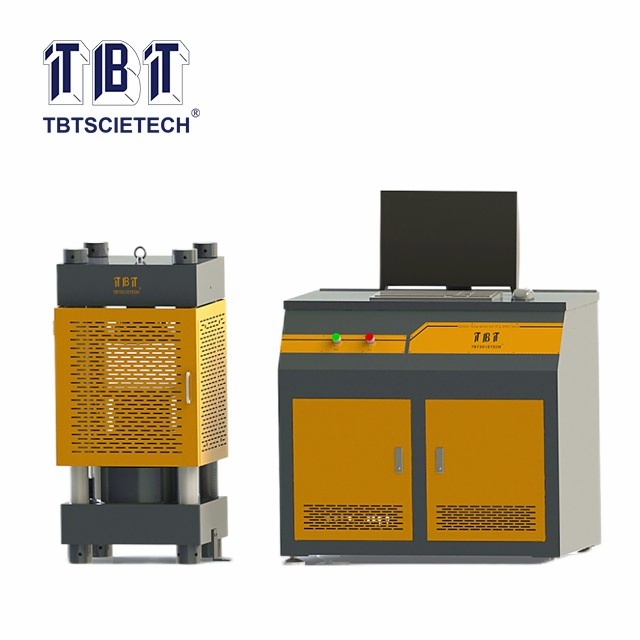

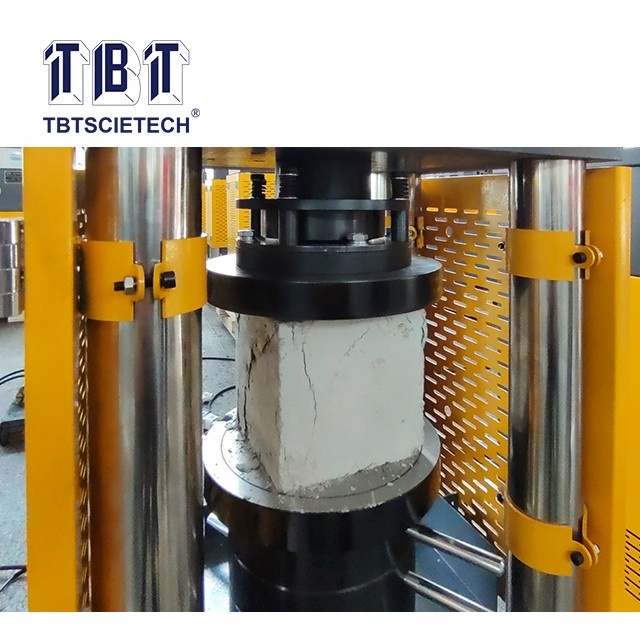

TBTCTM-2000AG is designed for testing the compressive strength of concrete material.

The machine is a high-precision material testing equipment, which is driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus.

ASTM C39, ASTM C140

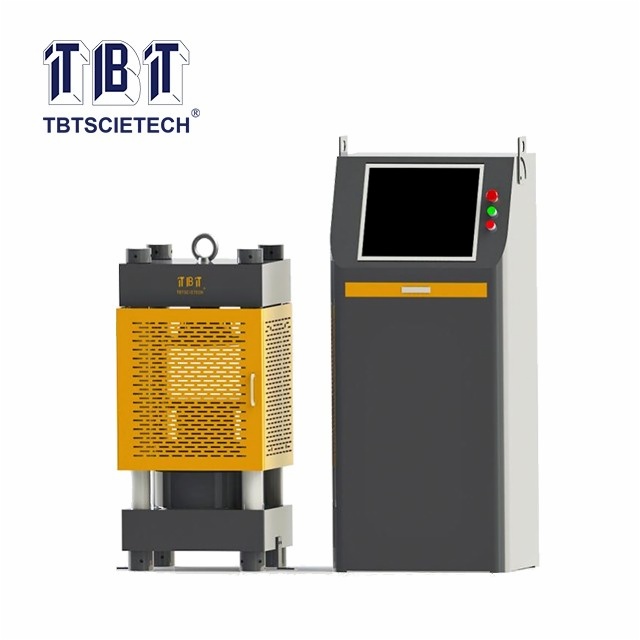

1.Automatic control via all in one PC;

2.Loading rate can be set up and meet the standard required by constant loading compression for the test of concrete and other building materials;

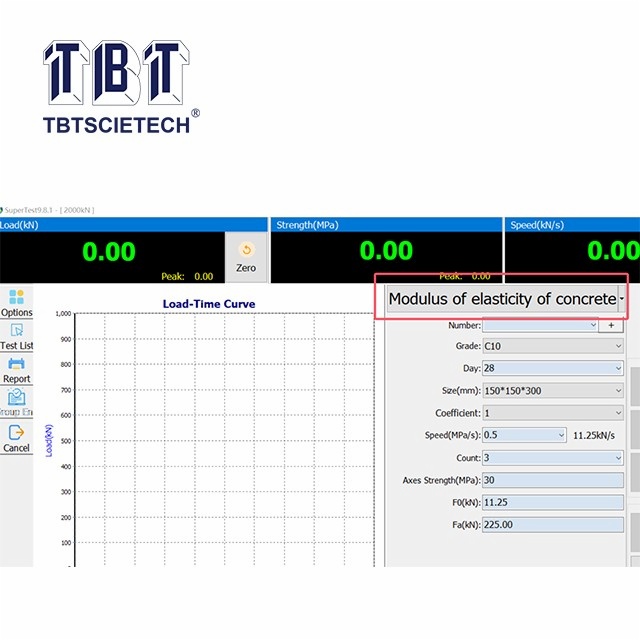

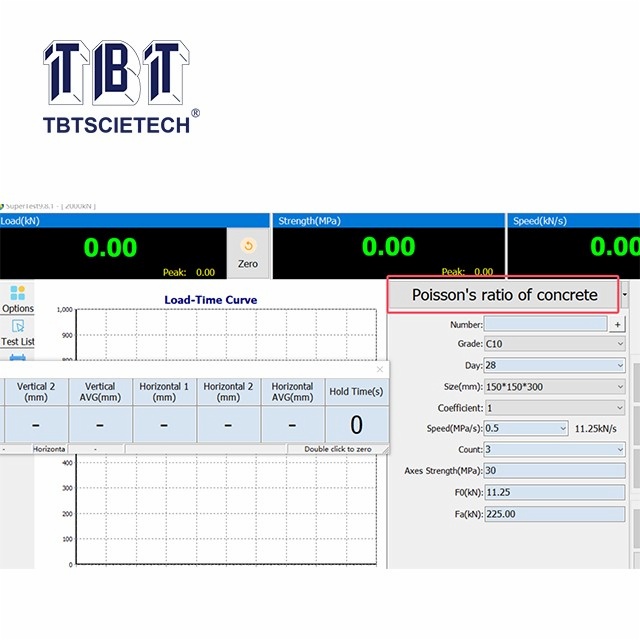

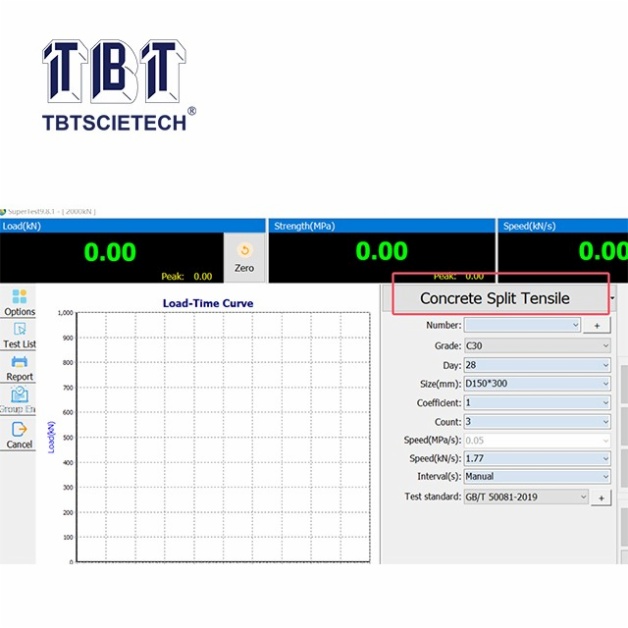

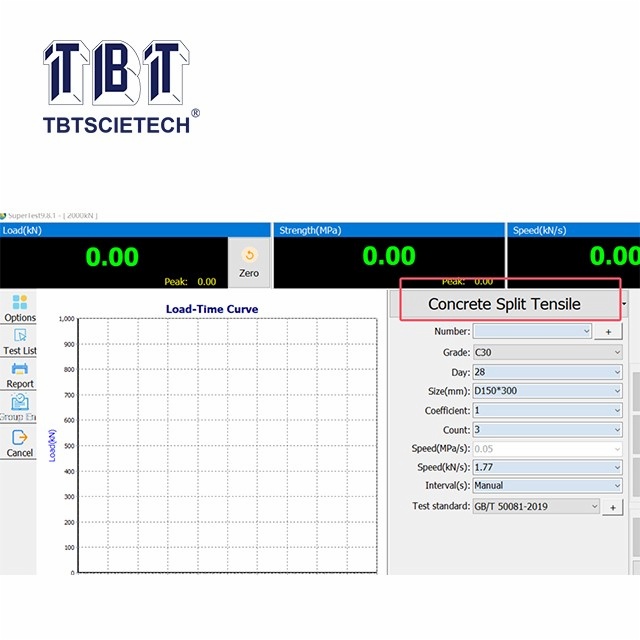

3.Dynamic display & in-time control of loading, time and test curve, can maintain Max. test force value.

Max. load capacity	2000kN
Measuring range of load	10%~100%F.S.
Relative error	±1%
Loading rate	0.2~80kN/s
Column size	Ф65mm
Distance between front and rear columns	206mm
Distance between left and right columns	286mm
Vertical clearance between platens	330/380mm

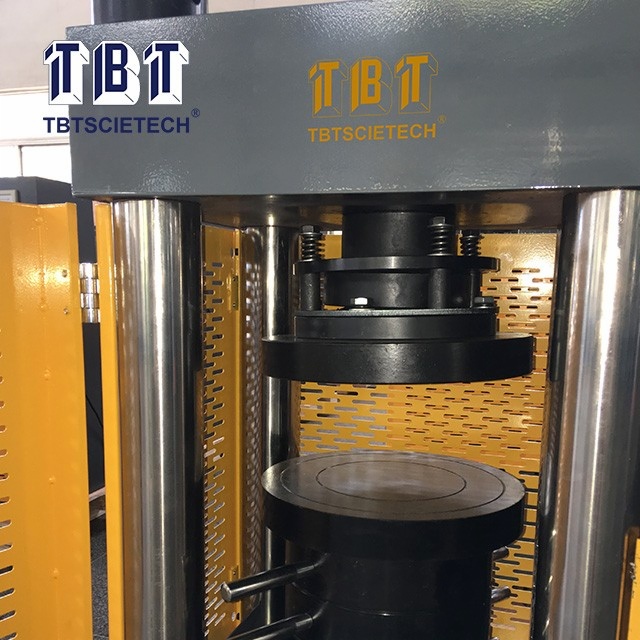

Upper platen size	Ф295xT32mm
Lower platen size	Ф295xT45mm
Distance piece size	330mm space: Ф200xT50mmx3pcs, Ф200xT77mmx1pc 380mm space: Ф200xT50mmx4pcs, Ф200xT77mmx1pc
Platen hardness	55HRC
Distance piece hardness	20HRC
Sensor type	Oil pressure sensor 50MPa
Hydraulic cylinder piston	Sealing ring type(PTFE)
Piston stroke	50/100mm
Speed	0.1%~4%FS/s
Size	910x420x1100mm
Weight	Approx. 620kg
Power Supply	220V, 50/60Hz, 0.75kW; 380V, 50Hz, 1.1kW

Compression Testing Machine with PC Control TBTCTM-2000AG
