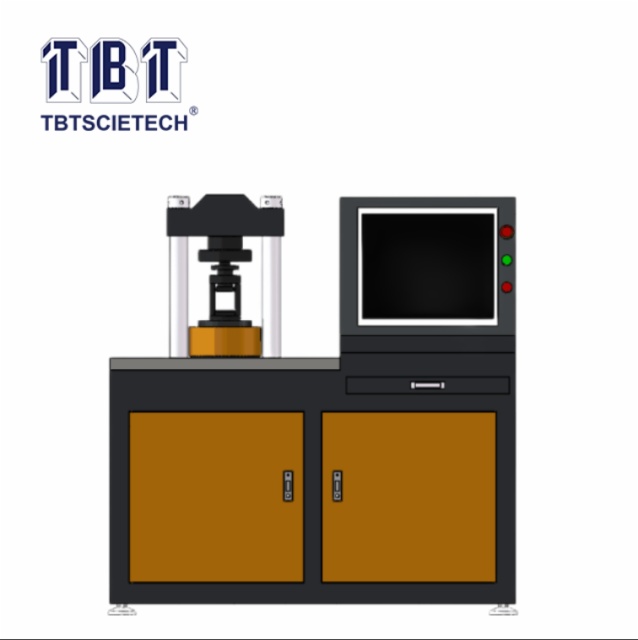

Compression Testing Machine with PC Control& Auto Loading TBTCTM-300A

Item Code:TBTCTM-300A Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

The testing machine is designed for testing the compressive strength of cement mortar in accordance with the Standard GB17671-99 “the test regulation of cement mortar strength”. Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.

It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed

Maximum Capacity:

300 kN

Measuring range:

0-300 kN

Relative Error

±1%

Loading rate:

0-10.0 kN/s

Max. Vertical clearance between platen

180 mm

Maximum travel of piston

80 mm

Diameter of piston

Ф118 mm

Rated pressure of oil pump

30Mpa

Power supply

220VAC 750W



1.Oil Pump

2.Motor

3.O-ring
