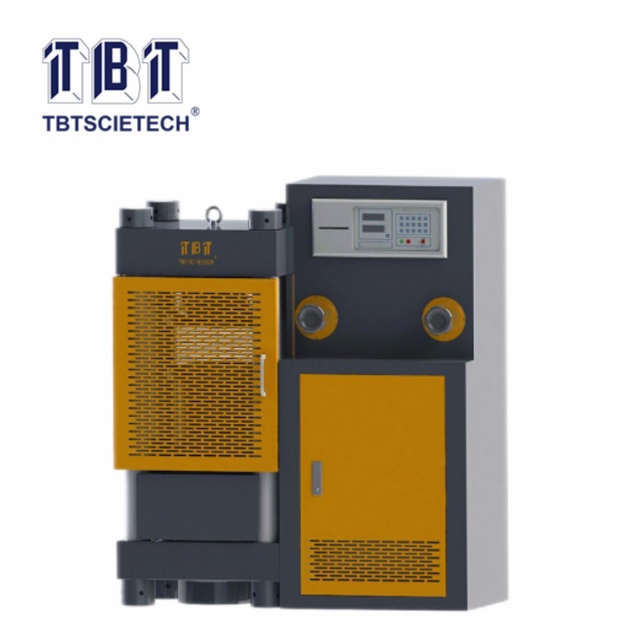

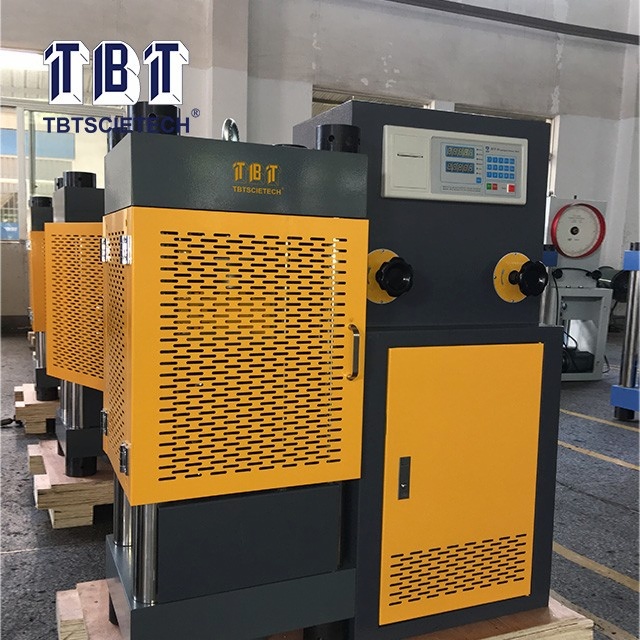

    Compression Testing Machine with Digital Display TBTCTM-Y2000

    • Compression Testing Machine with Digital Display
    • Compression Testing Machine with Digital Display
    • Compression Testing Machine with Digital Display
    • Compression Testing Machine with Digital Display
    Compression Testing Machine with Digital Display
    Compression Testing Machine with Digital Display
    Compression Testing Machine with Digital Display
    Compression Testing Machine with Digital Display
    Item Code:TBTCTM-Y2000 Features:TBTCTM-Y2000 is designed for testing the compressive strength of concrete material.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

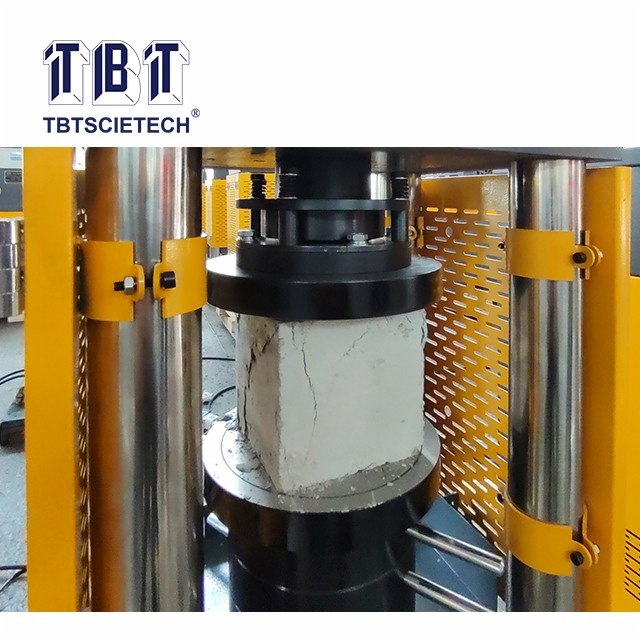

    TBTCTM-Y2000 is designed for testing the compressive strength of concrete material.
    It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; the test report can be printed.
    The compression space can be adjusted by adding or removing distance pieces.

    ASTM C39, ASTM C140

    Max. load capacity

    2000kN

    Measuring range of load

    10%~100%F.S.

    Relative error

    ±1%

    Loading rate

    0.2~80kN/s

    Column size

    Ф65mm

    Distance between front and rear columns

    190mm

    Distance between left and right columns

    280mm

    Vertical clearance between platens

    330/380mm

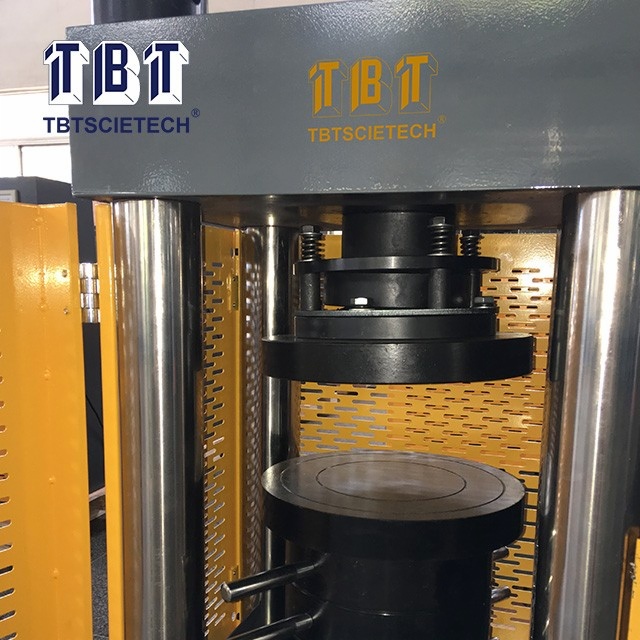

    Upper platen size

    Ф250xT33mm/220x290x33mm

    Lower platen size

    Ф250xT40mm/220x290x40mm

    Distance piece size

    330mm space:

    Ф200xT50mmx3pcs, Ф200xT77mmx1pc

    380mm space:

    Ф200xT50mmx4pcs, Ф200xT77mmx1pc

    Platen hardness

    55HRC

    Distance piece hardness

    20HRC

    Sensor type

    Oil pressure sensor 50MPa

    Hydraulic cylinder piston

    Sealing ring type(O ring black+brownness Stepseal)

    Piston stroke

    50mm

    Speed

    0.1%~5%FS/s

    Size

    910x420x1100mm

    Weight

    Approx. 620kg

    Power Supply

    220/380V, 50/60Hz, 0.75kW
