Compression Testing Machine with PC Control& Auto Loading Manufacturer

Description
Referring Standard
Features
Technical Specification

The testing machine is designed for testing the compressive strength of cement mortar in accrodence with the Standard GB17671-99 “the test regulation of cement mortar strength”. Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.

It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed

Model:	TBTCTM-2000E	TBTCTM-3000E
Maximum Capacity:	2000 kN	3000 kN
Measuring range:	0-2000 kN	0-3000 kN
Relative Error	±1%	±1%
Loading rate:	0-10.0 kN/s	0-10.0 kN/s
Max. Vertical clearance between platen	320 mm	320 mm
Maximum travel of piston	50 mm	50 mm
Diameter of piston	Ф250 mm	Ф310 mm
Rated pressure of oil pump	40Mpa	40Mpa
Power supply	220VAC 750W	220VAC 750W

1. Oil Pump

2. Motor

3. O-ring

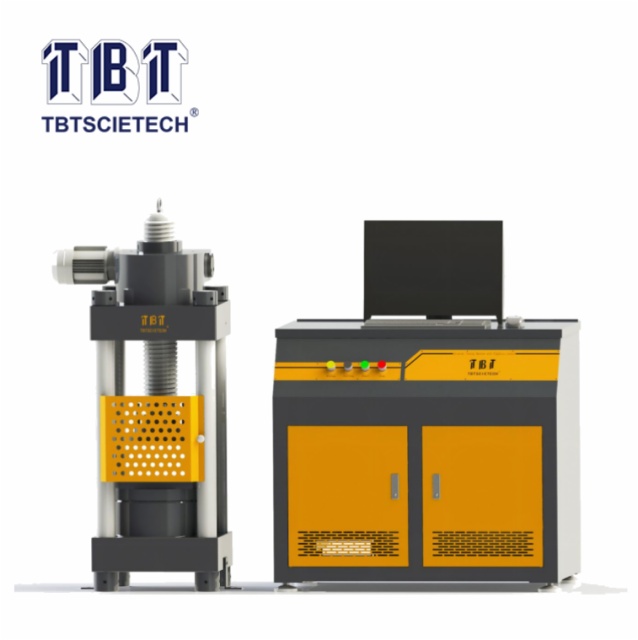

Compression Testing Machine with PC Control& Auto Loading TBTCTM-2000E/TBTCTM-3000E
