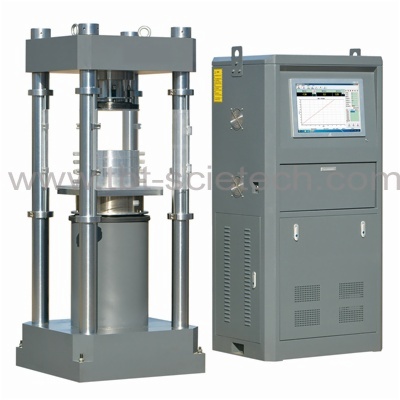

    Compression Testing Machine with PC&Servo Control TBTCTM-2000PC4

    Compression Testing Machine with PC&Servo Control
    Item Code:TBTCTM-2000PC4 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    The testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed

    Model

    TBTCTM-2000PC4

    Max capacity(KN)

    2000

    Indication accuracy

    1(0.5)

    Piston control method

    Two-way

    Sensor type

    Spoke load

    Space adjustment method

    Pad adjustment

    Max Compression space（mm）

    400

    Piston stroke(mm)

    200

    Compression platen dimensions(mm)

    Φ300

    Host dimentions(mm)

    720*720*1800

    Demensions of Oil source cabinet(mm)

    800*600*1600

    Power(KW)

    3.5

    Total Weight(kg)

    3000



    Other Products

    Product Name:
    Compression and Flexural Testing Machine with PC Control
    Model:
    TBTCTM-500B
    Description:
    TBTCTM-500B is designed for testing the cement compressive strength and cement/concrete flexural strength. It is electro-hydraulically powered, electronic measuring, configured a dedicated hydraulic valve to achieve constant loading speed.
    Product Name:
    Compression Testing Machine with PC Control (Touch Screen)
    Model:
    TBTCTM-3000ZW
    Description:
    TBTCTM-3000ZW is designed for testing the compressive strength of concrete material. It is a high-precision material testing equipment, driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus. The maximum test force is 3000kN, and the accuracy is better than grade1.
    Product Name:
    Compression Testing Machine with PC Control
    Model:
    TBTCTM-3000AG
    Description:
    TBTCTM-3000AG is designed for testing the compressive strength of concrete material. The machine is a high-precision material testing equipment, which is driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus.
