Compression Testing Machine with Digital Display Manufacturer

Description
Referring Standard
Features
Technical Specification

The testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete;

It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off;

The test data can be processed automatically and the test report can be printed.

Maximum Capacity:	1000 kN	2000 kN
Measuring Range	0-1000 kN	0-2000 kN
Relative Error	±1%	±1%
Platen dimension	220mm×280 mm	220mm×280 mm
Max. Vertical clearance between platen	320 mm	320 mm
Max. horizontal clearance between column	275mm	275mm
Maximum travel of piston	40 mm	40 mm
Diameter of piston	Ф250 mm	Ф250 mm
Rated pressure of oil pump	40 Mpa	40 Mpa
Power supply	220VAC 750W	220VAC 750W
Weight	670kg	670kg
Host Dimension	900X500X1100	900X500X1100

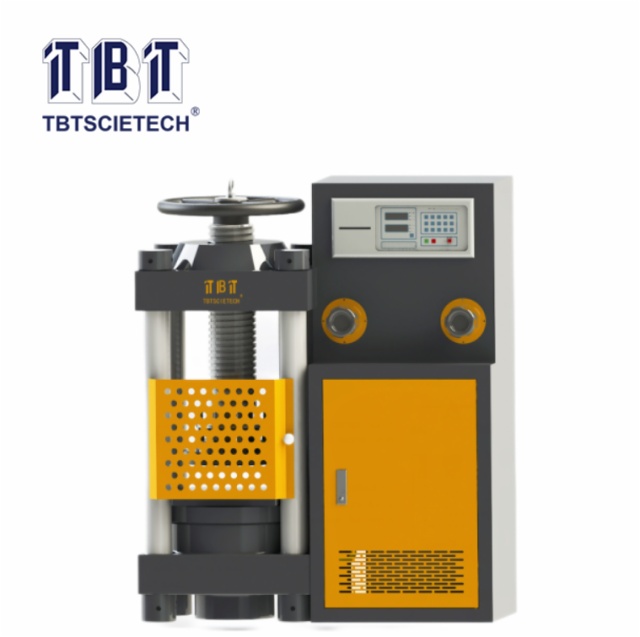

Compression Testing Machine with Digital Display TBTCTM-1000N/2000N
