Compression Testing Machine with PC Control (Touch Screen) Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTCTM-3000ZW is designed for testing the compressive strength of concrete material.

It is a high-precision material testing equipment, driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus. The maximum test force is 3000kN, and the accuracy is better than grade1.

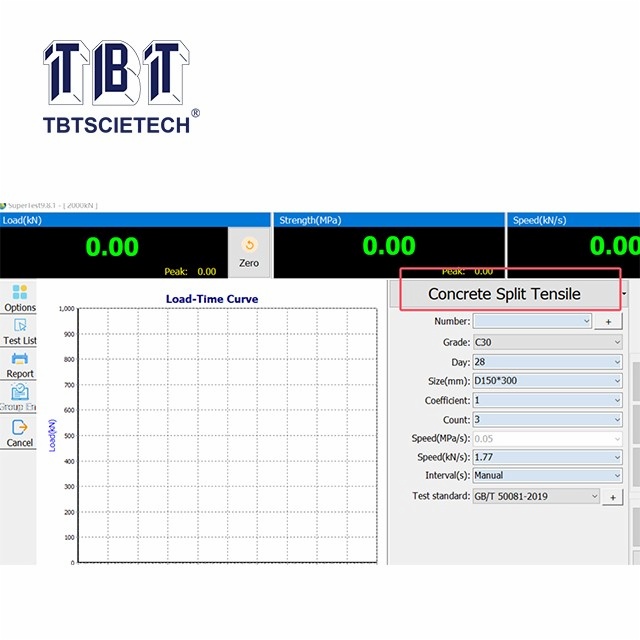

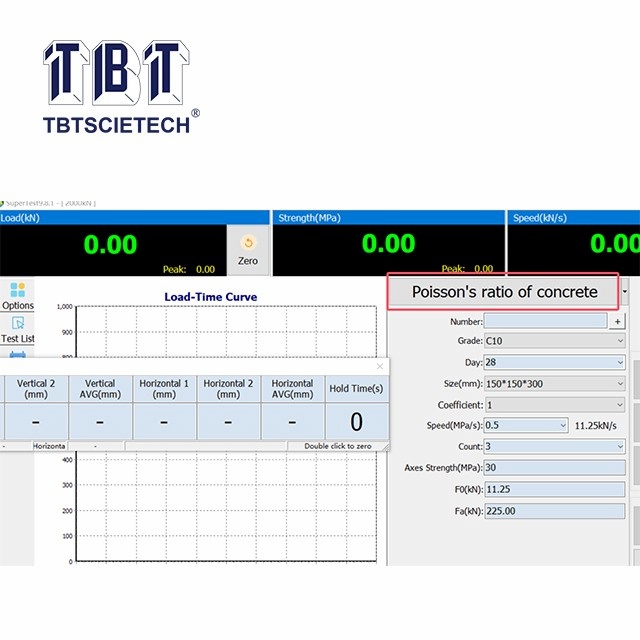

Loading rate can be set up and meet the standard required by constant loading compression for the test of concrete and other building materials, with dynamic display & in-time control of loading, time and test curve , with function of maintaining maximum test force value.

ASTM C39, ASTM C140, EN ISO 7500-1

Display	Touch screen with keyboard function
Capacity	3000kN
Measuring range	2~100%
Measuring Range	Processing without grading, equivalent to 4 grades
Relative error	±1%
Test loading resolution	1/200,000F·S

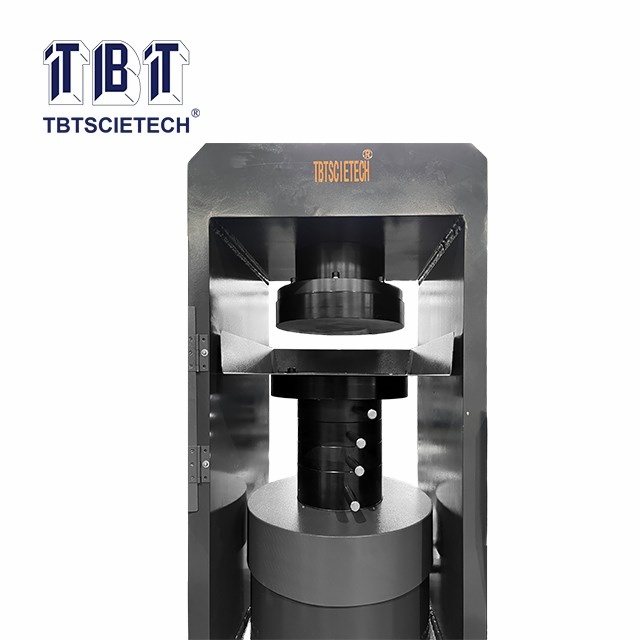

Max. distance between upper and lower platens	330mm
Upper and lower pressure plates size	Φ300mm*T50mm
Working space	435x435x105~330mm
Piston speed	40mm/min
System working pressure	40MPa
Size	1020x450x1400mm
Weight	1380kg
Power supply	220V, 50/60Hz

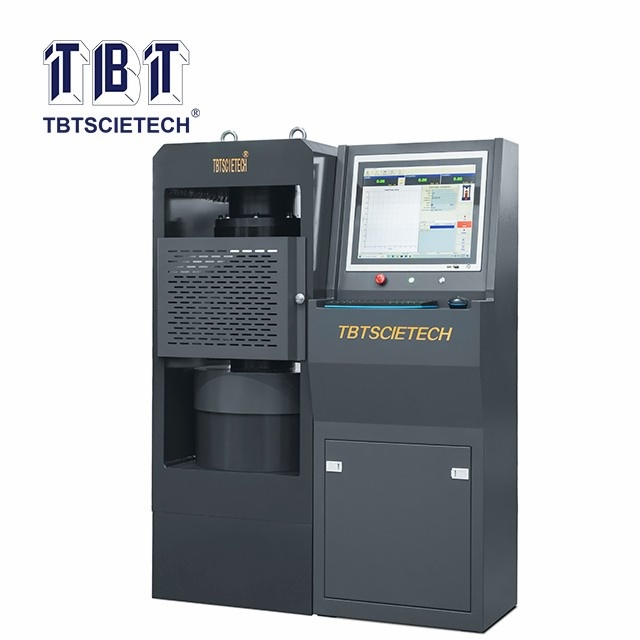

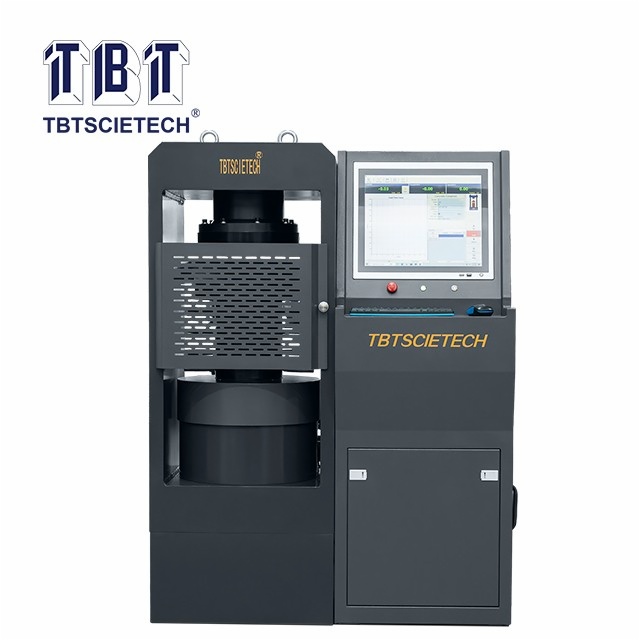

Compression Testing Machine with PC Control (Touch Screen) TBTCTM-3000ZW
