Compression and Flexural Testing Machine with PC Control Manufacturer

TBTCTM-2000-300 is designed for testing the compressive of concrete cube and flexural strength of brick, cement, concrete beam with one controlling system.

It is a high-precision material testing equipment, driven by hydraulic power with computer data acquisition & processing, can make closed-loop control and automatic detection. It consists of four parts: main engine, oil source (hydraulic power source), measurement & control system and test apparatus.

ASTM C39, ASTM C140

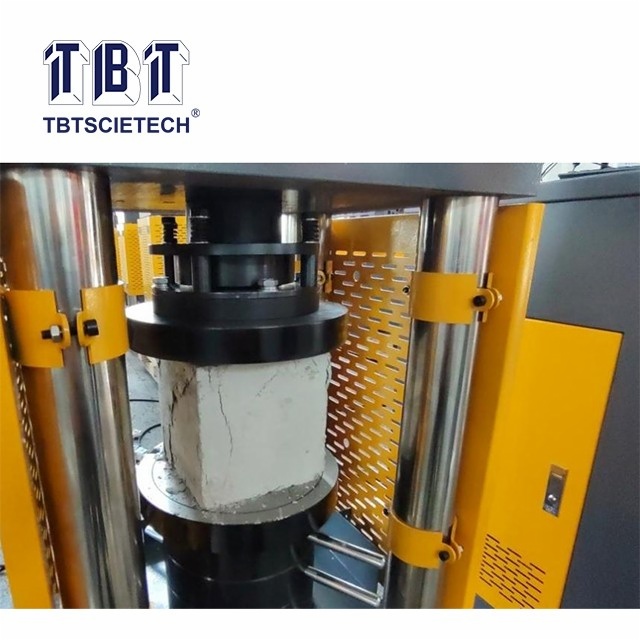

1. Suitable for 100x100x100, 150x150x150, 100x200, 150x300, 160x320mm concrete compression test;

2. Suitable for 150x150x500, 150x150x600mm concrete beam flexural test;

3. Suitable for irregular shape brick compression test;

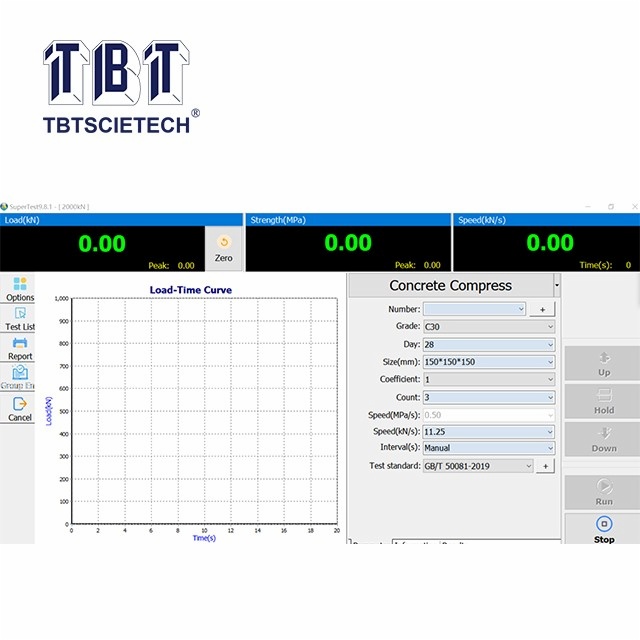

4. Loading rate can be set up and meet the standard required by constant loading compression for the test of concrete and other building materials, with dynamic display & in-time control of loading, time and test curve, with function of maintaining maximum test force value.

Compression Test
Max. compression test capacity	2000kN
Measuring range	200~2000kN
Relative error	±1%
Pressure plate size	Diameter 250x33mm (round) upper plate Diameter 250x40mm (round) lower plate
Distance piece	Diameter 200mm3pcs Diameter 200mm1pc
Max. distance between upper & lower plate	330mm (380mm)
Piston stroke	50mm (100mm)
Loading speed	0.1%~5%FS/s
Power supply	220V, 50/60Hz
Flexural Test
Max. flexural test capacity	300kN
Measuring range	30~300kN
Relative error	±1%
Max. distance between upper and lower flexure bearers	153mm
Central distance between upper bearers	100/150mm
Central distance between lower bearers	300/450mm
Piston stroke	80mm
Power supply	220V, 50/60Hz
Size	Main host: 445x370x1050mm compression 550x460x1190mm flexural Control cabinet: 1000x600x930mm

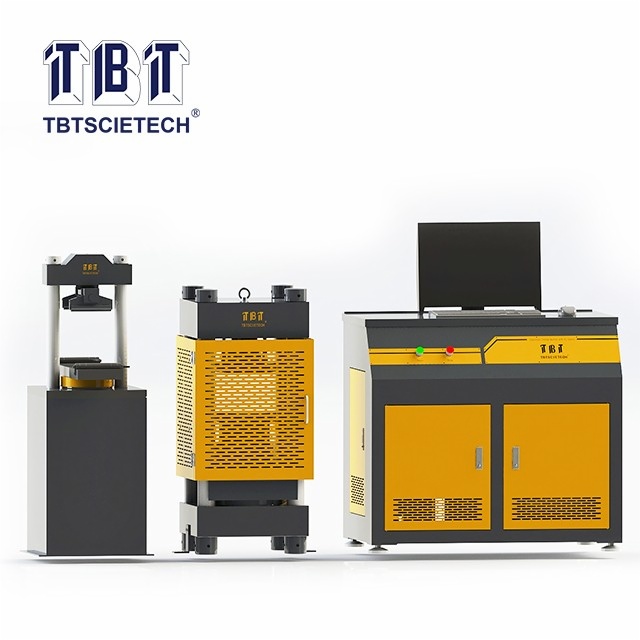

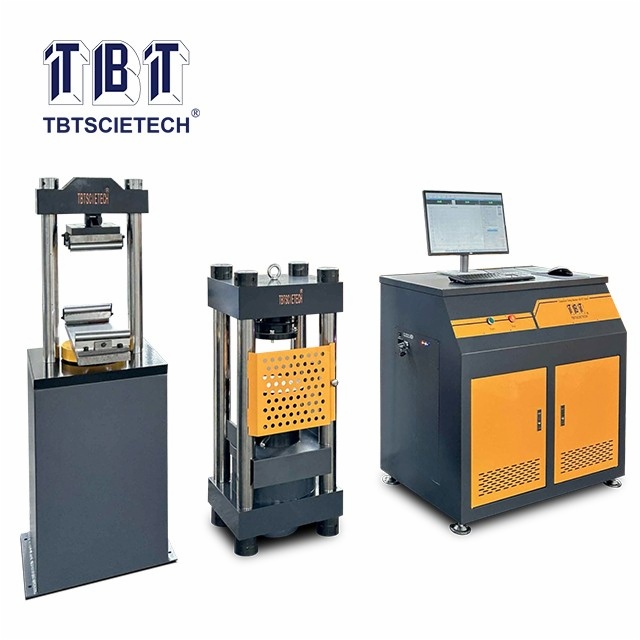

Compression and Flexural Testing Machine with PC Control TBTCTM-2000-300
