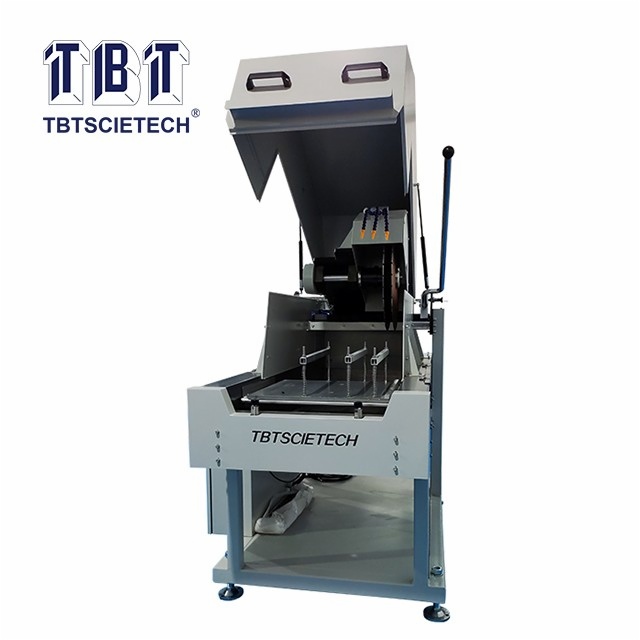

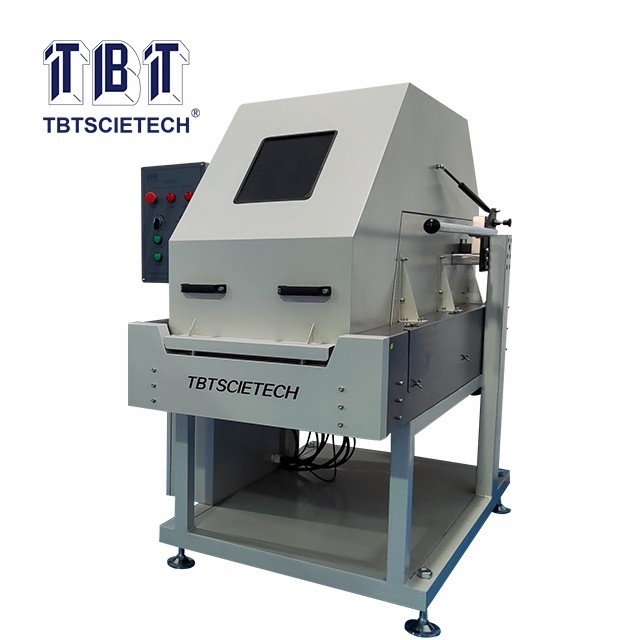

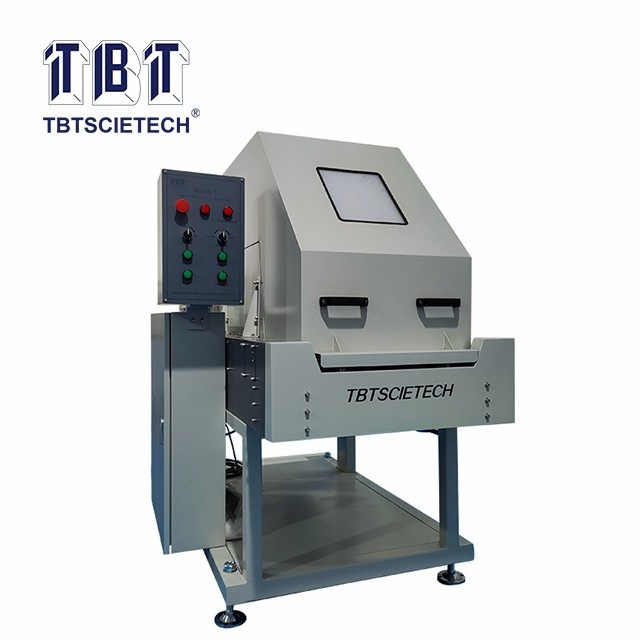

Asphalt Mixture Cutting Machine TBTASQ-1

  • Asphalt Mixture Cutting Machine
  • Asphalt Mixture Cutting Machine
  • Asphalt Mixture Cutting Machine
  • Asphalt Mixture Cutting Machine
  • Asphalt Mixture Cutting Machine
  • Asphalt Mixture Cutting Machine
Item Code:TBTASQ-1 Features:TBTASQ-1 Asphalt Mixture Cutting Machine is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTASQ-1 Asphalt Mixture Cutting Machine is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test.
It adopts waterproof motor, rigid steel frame, can perform good cutting stability with high accuracy and smooth surface.
1.Rigid rust-proof steel frame;
2.Select suitable diamond saw blade according to asphalt specimen strength and grade;
3.Adopts high precision transmission system to ensure the cutting accuracy with the range of 0.15~0.2mm;

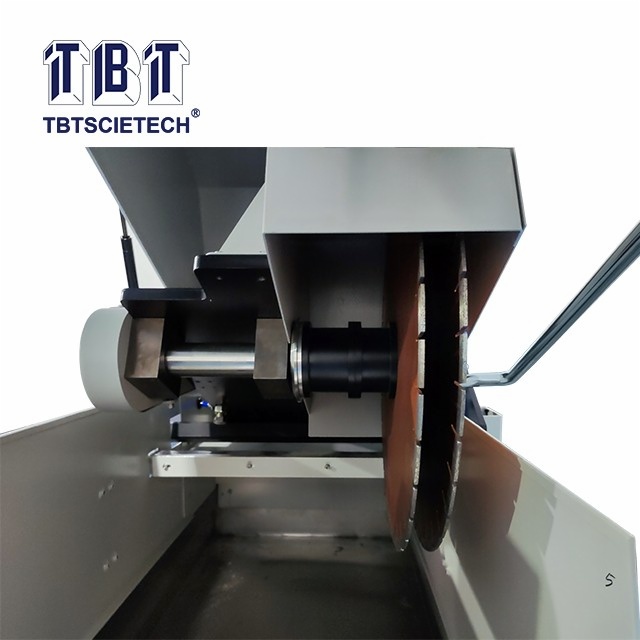

4.Double saw blade design, blade feeding speed adjustable;

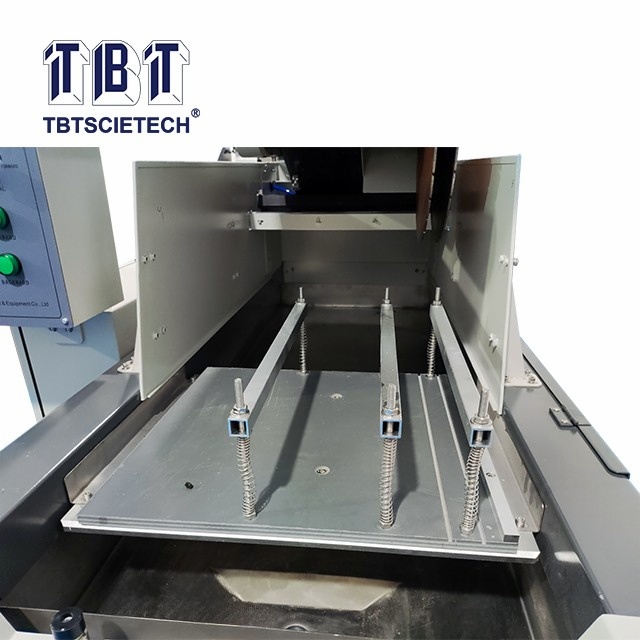

5.Changing different clamps can cut different types of asphalt specimen, easy operating;
6.Fully sealing safety cover, low noise;

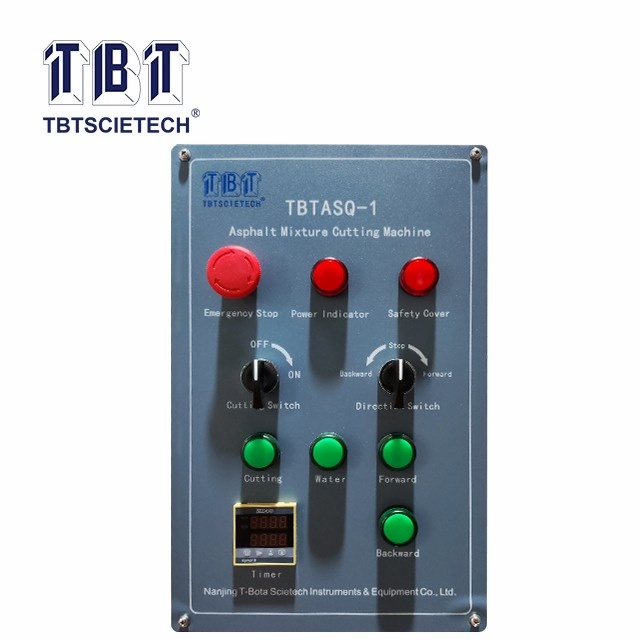

7.Cutting process are fully automatic controlled via electronic controller;
8.Individual count down timer to avoid machine long time idling after cutting;
9.Water tank filter system for collecting crushed aggregates and water circulation.

Saw Blade Rotating Speed

3000r/min

Saw Blade Diameter

D470mm or D500mm

Adopted Specimen Size

Cylinder specimen: Dia. 100mm

Cylinder specimen: Dia. 150mm

Cuboid specimen: thickness from 25mm to 150mm(optional)

Working Temperature & Humidity

5~35℃ & ≤85% R.H

Motor Waterproof Grade

IP56

Cutting Accuracy

0.15~0.2mm

Cutting Power

4000W

Power Supply

380VAC 50Hz
