    Centrifuge Binder Extractor TBTACT-X

    • Centrifuge Binder Extractor
    • Centrifuge Binder Extractor
    • Centrifuge Binder Extractor
    Centrifuge Binder Extractor
    Centrifuge Binder Extractor
    Centrifuge Binder Extractor
    Item Code:TBTACT-X Features:TBTACT-X is used for the determination of bitumen percentage in bituminous mixtures.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

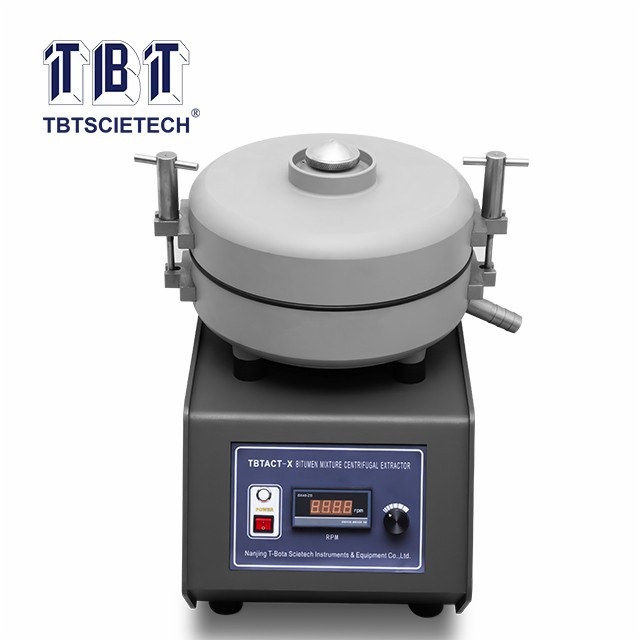

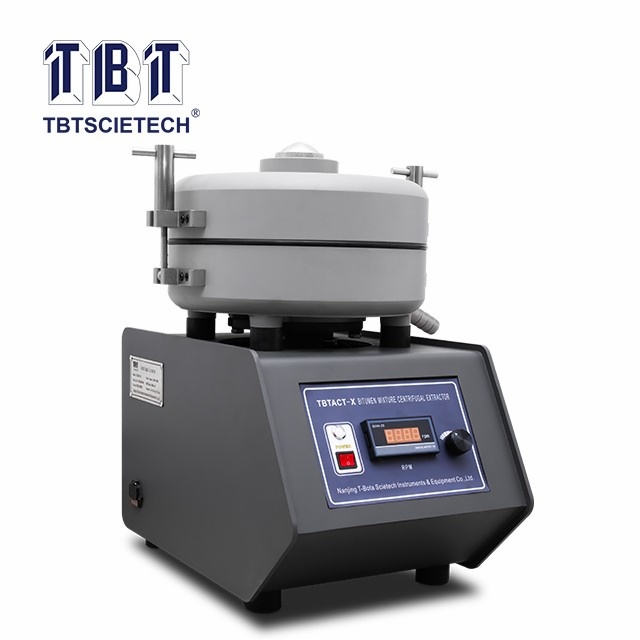

    TBTACT-X is used for the determination of bitumen percentage in bituminous mixtures.

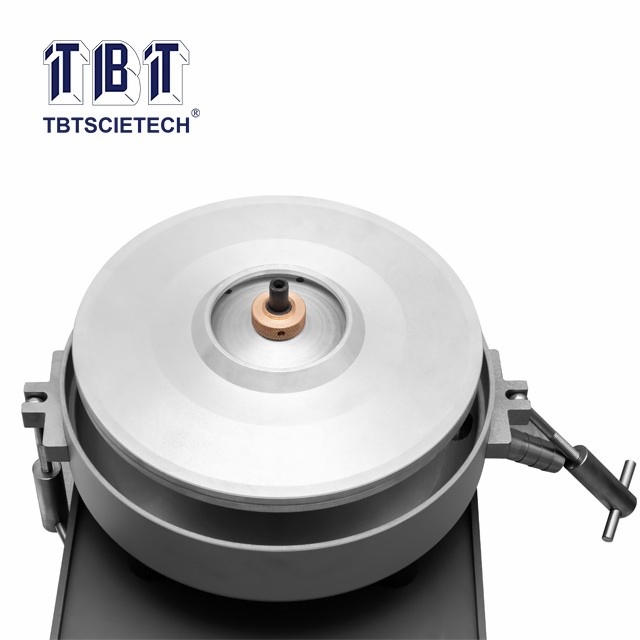

    It consists of a removable rotor bowl, placed into a cylindrical box. Variable speed control through the front panel mounted control knob and brake control included for rapid deceleration.

    EN12697-1, ASTM D2172, AASHTO T164A

    1.Stable operation with less vibration & noise;
    2.Equip with speed control system, from min. to max. Speed, easy operating;
    3.Standard 3000g bowl capacity and 1500g as optional.

    Rotating speed

    3600rpm max.

    Max. capacity

    3000g(1500g optional)

    Overall dimension

    Ø350mm x 526mm(H)

    Weight

    Around 70KG

    Filter paper

    20pcs in standard configure

    Motor power

    750W

    Power supply

    220V, 50/60Hz
