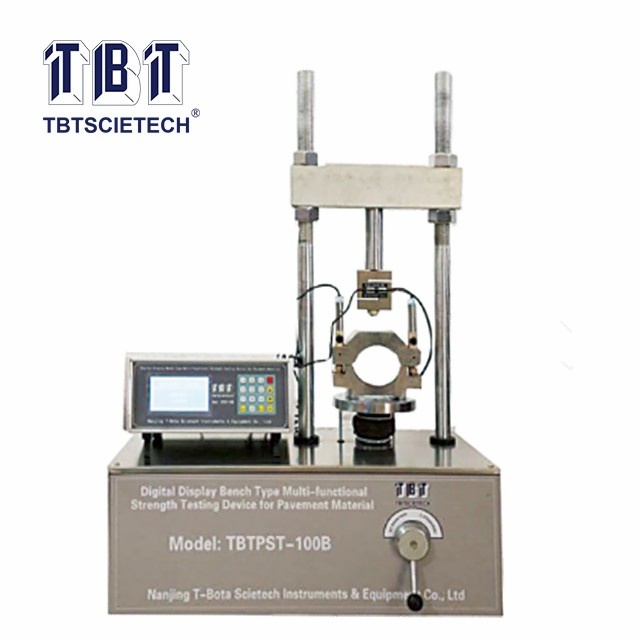

    Mult-Functional Pavement Material Strength Testing Machine TBTPST-100B

    Mult-Functional Pavement Material Strength Testing Machine
    Item Code:TBTPST-100B Features:TBTPST-100B adopts bench type, convenient for operating, can do the test of Marshall stability, CBR test, Unconfining.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTPST-100B adopts bench type, convenient for operating, can do the test of Marshall stability, CBR test, Unconfining.
    Through the English menu on the LCD screen, the test process of the whole test piece can be automatically processed, with data auto achieved.
    The operation is simple, test data is accurate, performance is stable and reliable. Equipped with standard R232 data interface, it can be connected with external printer or computer.
    1.Unique bench type design, save laboratory space and easy for operating;
    2.LCD display to show stability & flow value, with testing curve;
    3.Can connect with laptop or desktop computer.

    Max. capacity

    100KN (200KN optional)

    Max. Vertical distance

    120mm

    Electric working speed

    Low speed: 1mm/min.

    High speed: 50mm/min.

    Manual working speed

    Around 1/6mm per min.

    Power supply

    220VAC 50Hz
