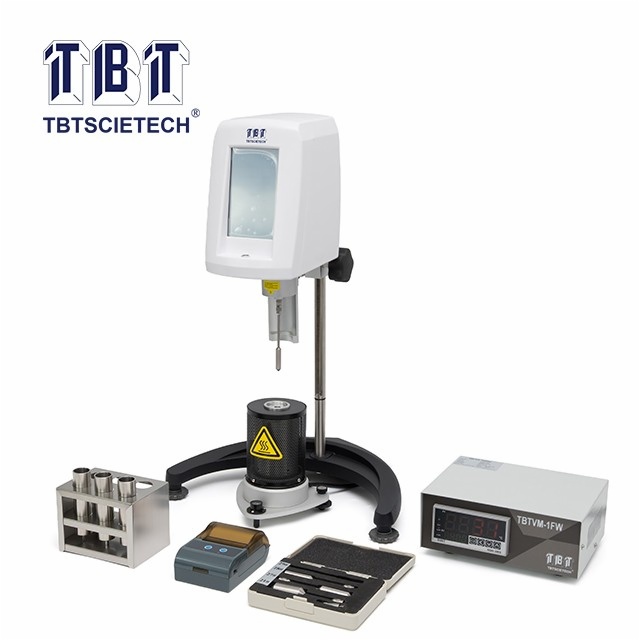

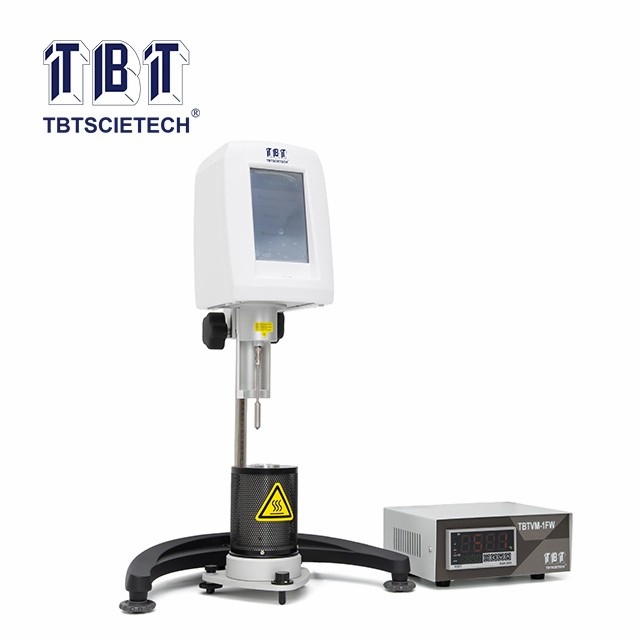

Rotational Viscometer TBTVM-1FW

  • Rotational Viscometer
  • Rotational Viscometer
  • Rotational Viscometer
Item Code:TBTVM-1FW Features:TBTVM-1FW is designed and made according to the ASTM D4402 Standard Test Method for Viscosity Determination of Asphalt at Elevated Temperatures Using a Rotational Viscometer.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTVM-1FW is designed and made according to the ASTM D4402 Standard Test Method for Viscosity Determination of Asphalt at Elevated Temperatures Using a Rotational Viscometer.
It is suitable to determine the absolute viscosity of the Newtonian liquids and the apparent viscosity of the non-Newtonian liquids.

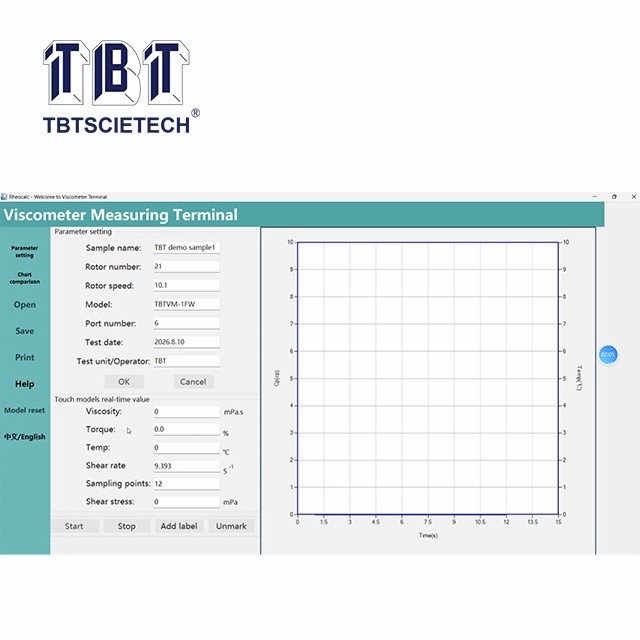

1. Adopts ARM technology and built-in Linux system. The operation interface is simple. The viscosity test can be performed quickly and conveniently via test program creation and data analysis;
2. Accurate viscosity measurement: Each range is automatically calibrated by computer, with high accuracy and small error;
3. Front spirit level: intuitive and convenient horizontal level adjustment;
4. Display information: Dynamic viscosity, Kinematic viscosity, temperature, shear rate, shear stress, percentage of measured value in full range value(graphic display), range overflow alarm, automatic scanning, maximum measurement range under the current rotor speed combination, date, time, etc. And it can display Kinematic viscosity when the density is known;
5. Multi-functions: can measure at setting time, build 30 sets of test programs, store and read 30 sets of measurement data, display viscosity curve in real time, print data and curves, etc. (printing interface is standard, the printer is optional configuration);
6. USB interface: data can be transferred via USB flash drive.

Measuring range

Spindle No. 21: 50-167k

Spindle No. 27: 250-834k

Spindle No. 28: 500-1.7m

Spindle No. 29: 1k-3.3m

Temperature control range

Room temperature~250 ℃

Temperature control accuracy

±0.1℃

Rotor speed

0.3~100 RPM(997pcs speed is selectable)

Spindle

No.21, No.27, No.28, and No.29

Measurement accuracy

±2.0%

Repeatability

±1.0%

Kinematic viscosity

Need to enter the density of the sample

Sample volume

Spindle No. 21: 7.8ml

Spindle No.27: 11.3ml

Spindle No. 28: 12.6ml

Spindle No. 29: 11.5ml

Auto scan function

Automatically scans and recommends preferred combinations of spindle and speed

Temperature measurement function

Equipped with temperature probe interface (Temperature probe is optional)

Maximum measuring range

Automatically displays the measurable viscosity range for the selected combination of spindle and speed

Output interface

RS232

Thermostatic parts

Optional (including various special thermostatic baths and thermostatic cups for viscometers)

Operation environment

5~35℃; ≤80% RH

Power supply

AC220V, 50Hz
