    Manual Type Marshall Compactor TBTEMC-M1

    • Manual Type Marshall Compactor
    • Manual Type Marshall Compactor
    Manual Type Marshall Compactor
    Manual Type Marshall Compactor
    Item Code:TBTEMC-M1 Features:TBTEMC-M1 Manual Marshall Compactor is designed for preparing asphalt mixture specimens in laboratory environments. This manually operated compactor is highly versatile, capable of compacting both 4-inch (101.6 mm) and 6-inch (152.4 mm) asphalt mixture specimens to meet diverse testing standards.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

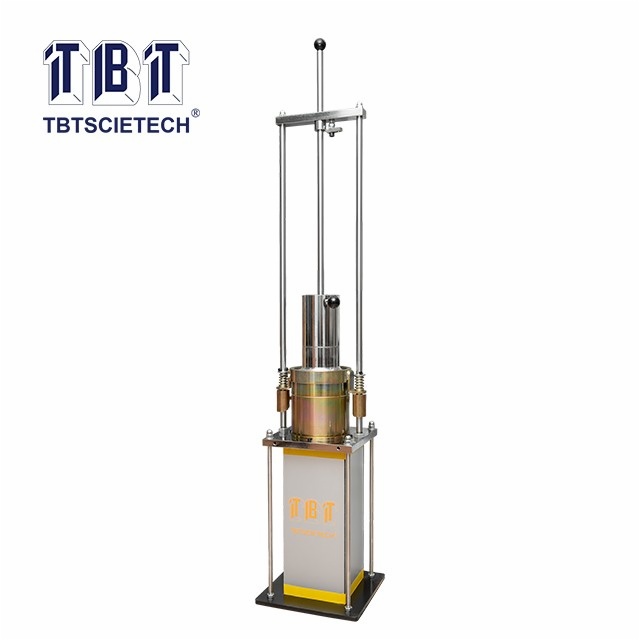

    TBTEMC-M1 Manual Marshall Compactor is designed for preparing asphalt mixture specimens in laboratory environments. This manually operated compactor is highly versatile, capable of compacting both 4-inch (101.6 mm) and 6-inch (152.4 mm) asphalt mixture specimens to meet diverse testing standards. Built with a robust structure to ensure stability and consistency, it serves as an ideal and cost-effective solution for standard Marshall stability and flow tests.

    1. This device can compact 2 different size specimen;
    2. No need to use electric as power.

    Hammer weight(small)

    4536g±9g

    Hammer weight(big)

    10210g±10g

    Falling of Hammer

    457mm±1.5mm

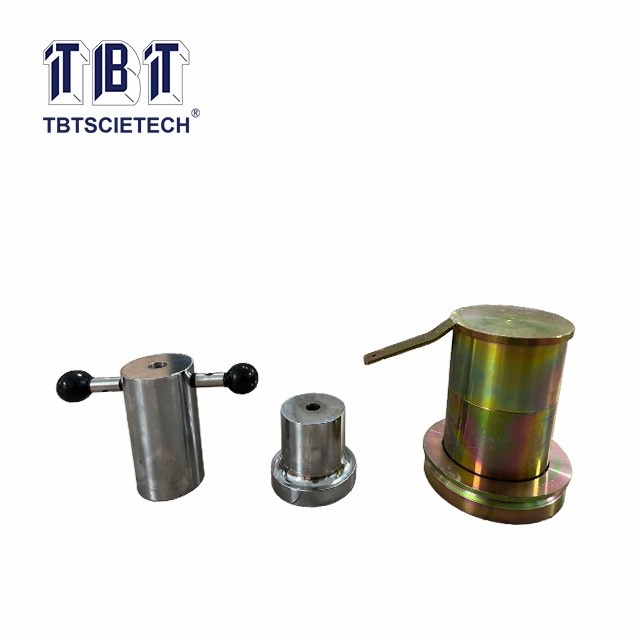

    Mould(small)

    D101.6mm

    Mould(big)

    D152.4mm

    Foundation

    300x300mm

    Weight

    Around 60kg
