    Pendulum Skid Resistance Tester TBTPFC-1

    • Pendulum Skid Resistance Tester
    • Pendulum Skid Resistance Tester
    • Pendulum Skid Resistance Tester
    Pendulum Skid Resistance Tester
    Pendulum Skid Resistance Tester
    Pendulum Skid Resistance Tester
    Item Code:TBTPFC-1 Features:TBTPFC-1 Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface, to check the resistance of wet and dry surfaces to slipping and skidding. It can test surface friction and skid resistance; Aggregates in PSV(Polished Stone Value) test and Road surface friction test.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

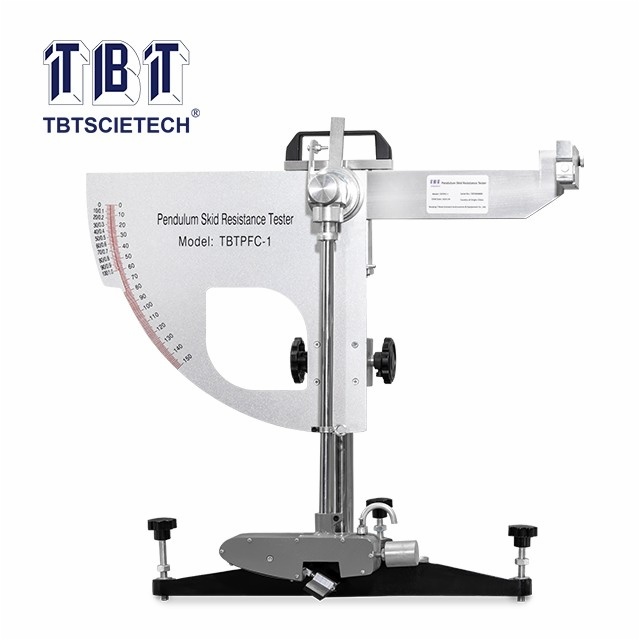

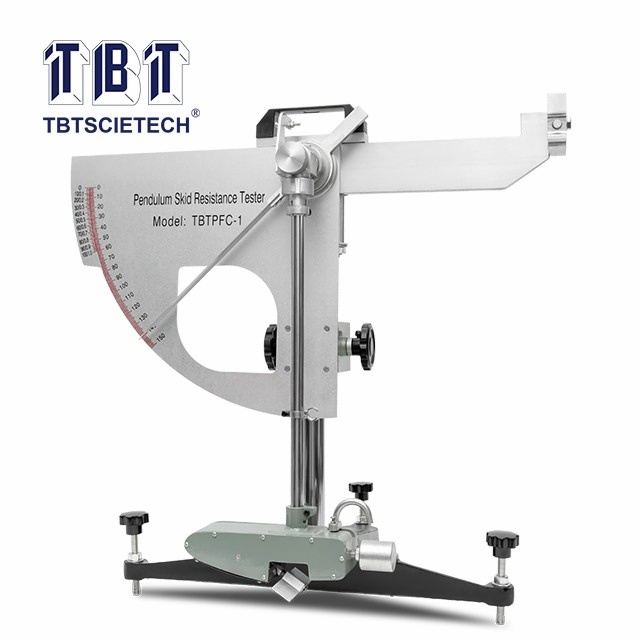

    TBTPFC-1 Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface, to check the resistance of wet and dry surfaces to slipping and skidding.

    It can test surface friction and skid resistance; Aggregates in PSV(Polished Stone Value) test and Road surface friction test.
    It can be used both in the lab and on site, for asphalt pavement, airport runway etc.

    ASTM E303, EN1097

    Pendulum

    1500±30g

    Distance between rocking centre and center of gravity

    410±5mm

    Positive static pressure on pavement

    22.2±0.5kN

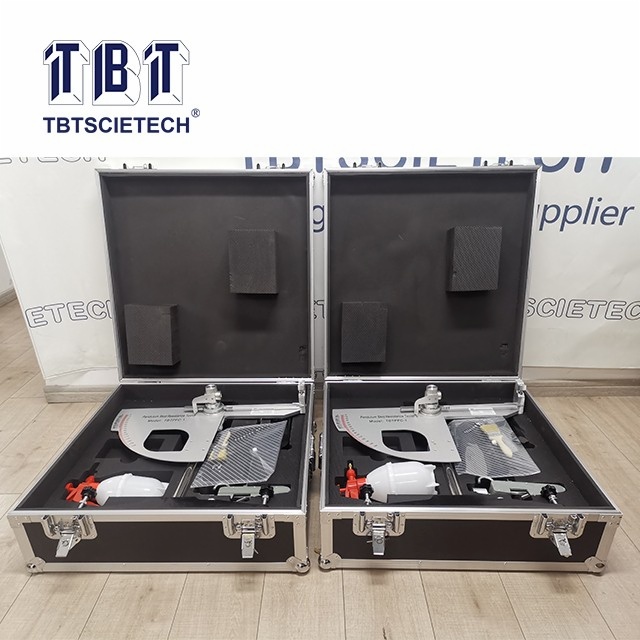

    Carrying case

    Alum. Case

    Distance to center

    510mm

    Net weight

    Around 12KG
