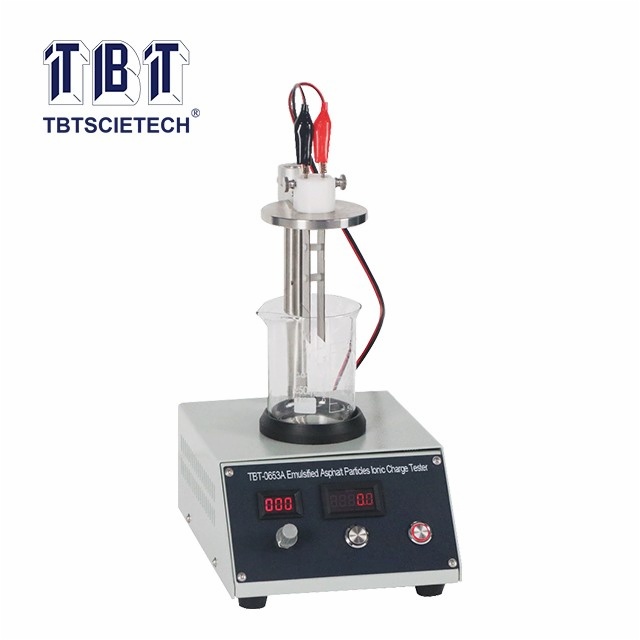

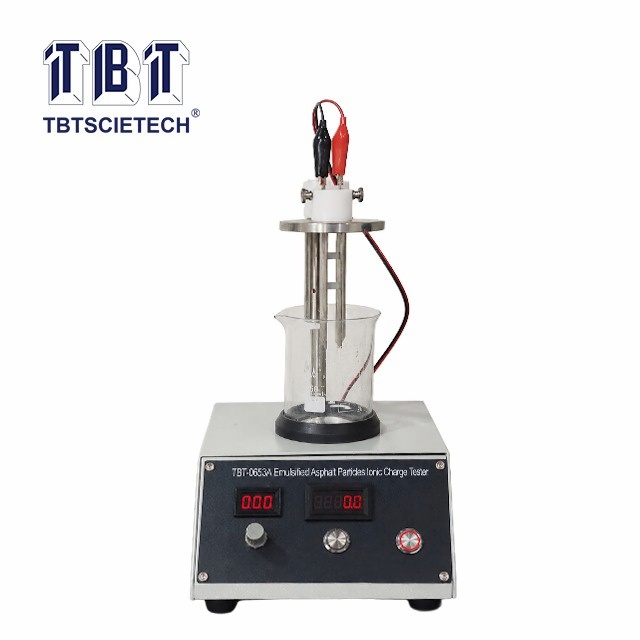

    Emulsified Asphalt Particles Ionic Charge Tester TBT-0653A

    • Emulsified Asphalt Particles Ionic Charge Tester
    • Emulsified Asphalt Particles Ionic Charge Tester
    Emulsified Asphalt Particles Ionic Charge Tester
    Emulsified Asphalt Particles Ionic Charge Tester
    Item Code:TBT-0653A Features:TBT-0653 is designed for Emulsified Asphalt Particles Ionic Charge Test .
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-0653 is designed for Emulsified Asphalt Particles Ionic Charge Test .
    It is used to determine the electric charge characteristics of different kinds of emulsified asphalt particles ionics.
    1. Adjustable height stand;
    2. The outer shell are treated with spraying plastics with good anti-corrosive ability.

    Capacity of beaker

    250ml

    Timer range

    0~1800s

    Timer resolution

    0.1s

    Ammeter

    0~900mA

    Ammeter resolution

    1mA

    Test voltage

    DC 0~30V

    Working temperature

    16~25℃

    Size

    180×270mm×230mm

    Power supply

    220V, 50Hz
