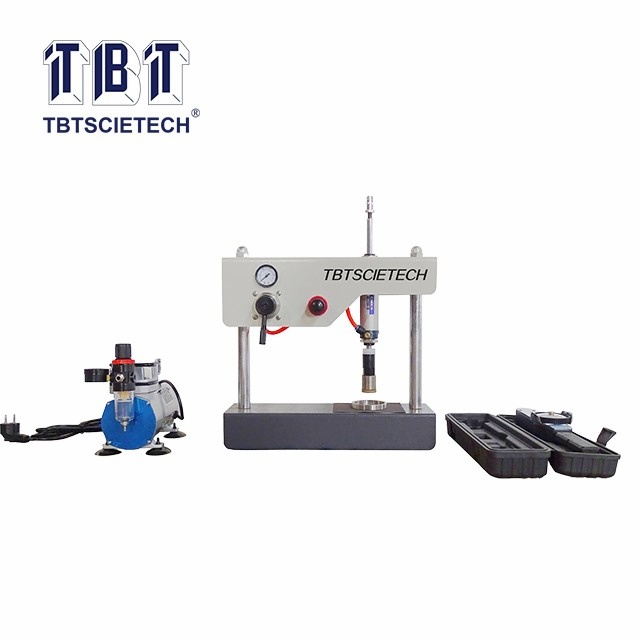

    Cohesion Tester TBT-0754H

    Cohesion Tester
    Item Code:TBT-0754H Features:TBT-0754H is designed referring to the ASTM D3910 Standard Practices for Design, Testing, and Construction of Slurry Seal. It can determine the time required for emulsified asphalt slurry seal mixtures to fully cure, which is essential for defining the early traffic opening time post-construction.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-0754H is designed referring to the ASTM D3910 Standard Practices for Design, Testing, and Construction of Slurry Seal. It can determine the time required for emulsified asphalt slurry seal mixtures to fully cure, which is essential for defining the early traffic opening time post-construction.

    ASTM D3910

    Size of the rubber pad

    Diameter 28.6mm, thickness 6.4mm

    Hardness of the rubber pad

    HRC60

    Pneumatic cylinder

    Double-acting pneumatic

    Loading adjustment method

    Pressure regulator with a variable bleed valve to maintain a constant air pressure

    Pressure gauge range

    0~1000kPa

    Pressurization port

    Connectable to an air compressor for cylinder pressurization

    Bidirectional control valve

    Control the rubber foot to be raised or lowered

    Torque wrench

    0~6N·M

    Circular mold

    Φ60x6mm; Φ60x10mm, Φ65x13mm, Φ80x16mm

    Power supply

    220V, 50Hz
