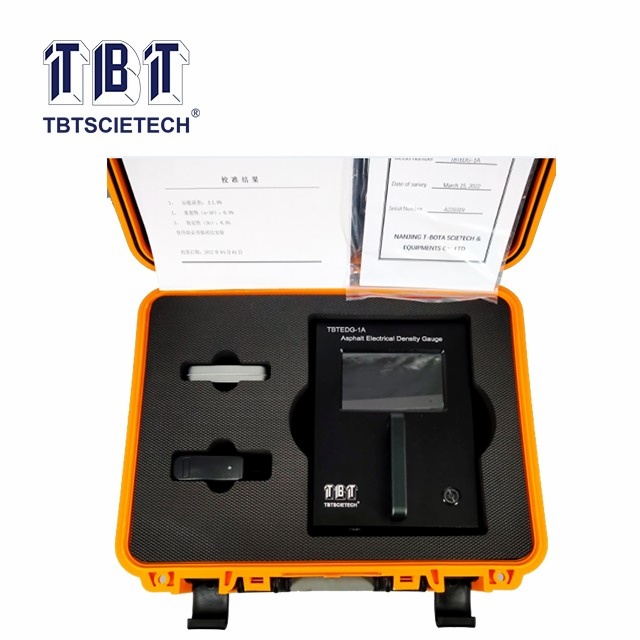

Asphalt Non-Nuclear Electrical Density Gauge(EDG) TBTEDG-1A

  • Asphalt Non-Nuclear Electrical Density Gauge(EDG)
  • Asphalt Non-Nuclear Electrical Density Gauge(EDG)
  • Asphalt Non-Nuclear Electrical Density Gauge(EDG)
Item Code:TBTEDG-1A Features:TBTEDG-1A Non-Nuclear Asphalt Density Gauge is a portable non-destructive pavement quality indicator with a touch screen and user friendly graphical menu interface.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

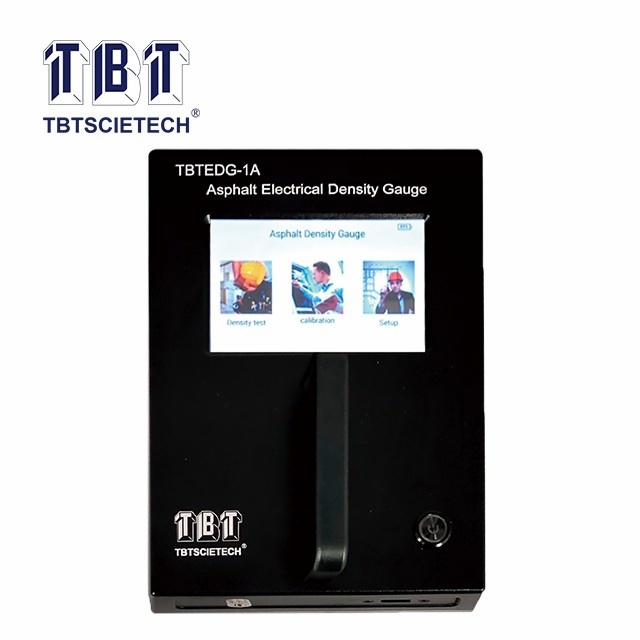

TBTEDG-1A Non-Nuclear Asphalt Density Gauge is a portable non-destructive pavement quality indicator with a touch screen and user friendly graphical menu interface.

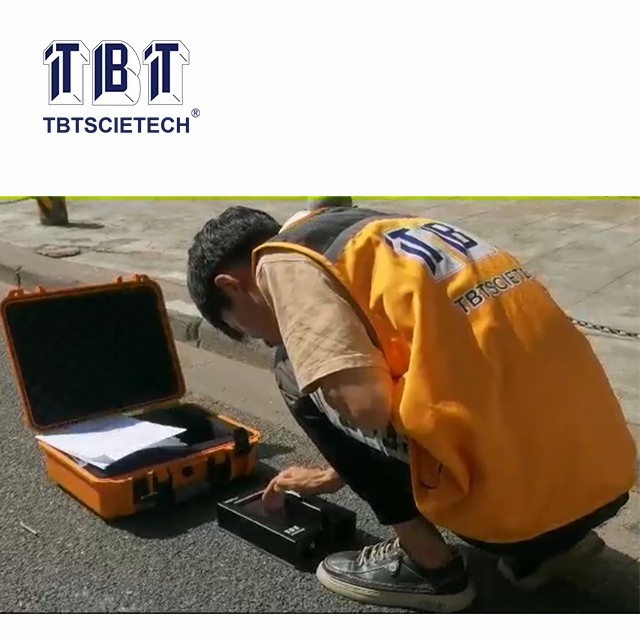

It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers of pavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
1.Fast and accurate material density and compaction test;
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations;
3.Can read the data accurately in three seconds;
4.Touch screen operation, light and easy operation;
5. Measuring Density in Universal Units (g./cm³ or kg/m³);
6. Higher precision and better stability;
7. Using U disc to copy the data directly.

Operating temperature

0℃~70℃

Measuring depth

Standard 20~120mm, Max. 300mm

Measuring time

≤3 seconds

Display content

Density/compaction/porosity/temperature and humidity

Temperature sensor

0~350℃

Accuracy

1~2%

Detection area

Diameter 15cm

Data

10,000 data can be stored in internal ROM;

32G storage support 1,000,000pcs

Built-in detection & calibration function

Accurate results obtained under various temperature & humidity conditions

Main unit dimension

Around 230*170*60mm

Displayer

With 5.1inch touch screen

Power supply

12V/2.6Ah Li-battery which can use continuously for approx. 24hrs

Interface

USB, U disc can transmit data directly or upgrade internal software

Calibration

No need to do coring calibration, can test directly

Built-in measurement correction(compensation) function for accurate results under various temperature & humidity conditions
