Automatic Penetrometer Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTZRD-5CS is used to measure the penetration of petroleum asphalt, modified asphalt and residue after evaporation of liquid petroleum asphalt or emulsified asphalt, and automatic calculate the penetration value.

It can also be used for the solid particles, powders, colloids, frozen bodies and other materials, as well as the inspection of food raw materials such as cheese, sugar gum, butter, malt jelly, cream and fermented body.

ASTM D5

1.Electronic control up and down;

2.Integrated thermostatic water bath for accurate temperature control;

3.Controller has data processing functions for penetration temperature index, penetration constant, correlation coefficient, penetration index, prittle point and plasticity temperature.

Measuring range	0~450 penetration
Constant temperature water bath	1. Temperature range: 0.00~99.99℃; 2. Temperature control range: low temperature: 15℃ lower than ambient temperature; high temperature: 60.00℃; 3. Display resolution: 0.01℃; 4. Temperature control accuracy: ≤± 0.1℃ 5. Size: diameter 172mm x height 100mm
Time control	1. Time control: 0~99seconds; 2. Display resolution: 0.1second; 3. Time control precision: ≤±0.1second
Displacement control	High precision LVDT displacement sensor, split structure, no friction when needle rod falls. Measuring range: 0~50mm; Maximum penetration depth: 40mm(equips with optional specimen jar); Resolution: 0.01mm(0.1 penetration); Relative displacement accuracy: ≤±0.1mm
Store data	200groups
Standard needle	2.5g±0.05g(penetration rod has a mass of 97.5g)
Size	Around 390×310×575mm
Power supply	220V, 50Hz

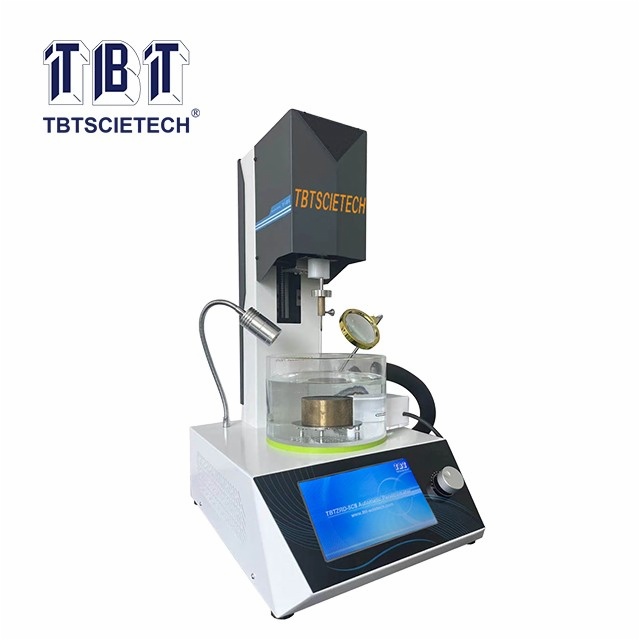

Automatic Penetrometer TBTZRD-5CS
