Asphalt Mixture Cutting Machine- Manufacturer

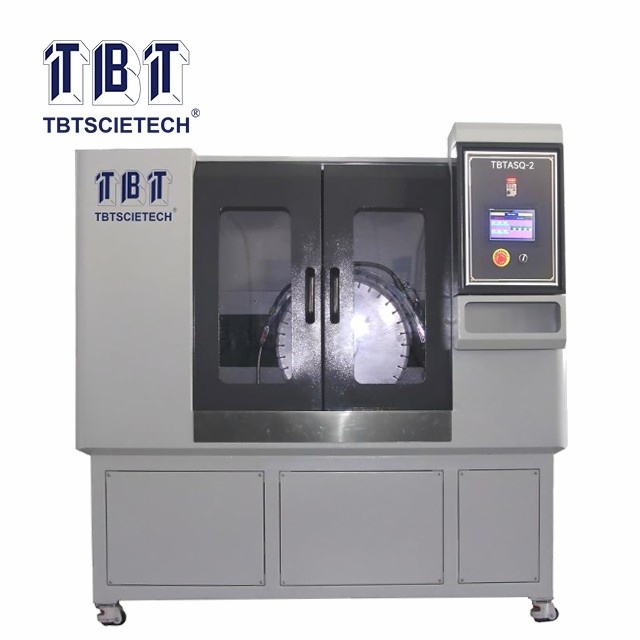

Asphalt Mixture Cutting Machine- TBTASQ-2

Item Code:TBTASQ-2 Features:TBTASQ-2 is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test & concrete specimen.

Description
Referring Standard
Features
Technical Specification

TBTASQ-2 is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test & concrete specimen.

It equips with waterproof motor, rigid steel frame, can perform good cutting stability with high accuracy and smooth surface.

1.Rigid rust-proof steel frame;

2.Touch screen for easy operation;

3.Select suitable diamond saw blade according to asphalt specimen strength and grade;

4.Adopts high precision transmission system to ensure the cutting accuracy within 0.5mm;

5.Double saw blade design, blade feeding speed adjustable;

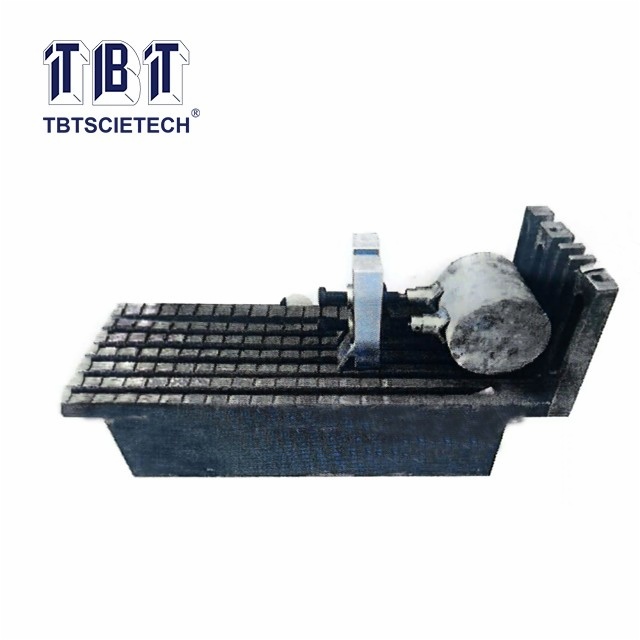

6.Changing different clamps can cut different types of asphalt specimen, easy operating;

7.Automatic feed, retract, reverse and stop, ensure safety and reliable to use.

Cutting line speed	33~45m/s
Saw blade diameter	D500mm or customized
Cutting method	Single saw blade or double saw blade cutting method
Double saw blade distance	Adjustable via the distance piece
Max. cutting height	160mm
Max. specimen size	Cylinder specimen: dia. 150x450mm Cuboid specimen: 150X150X450mm
Cutting accuracy	≤0.5mm
Working method	Continuous operation via water cooling
Working environment & humidity	Temperature: 5~40℃, relative humidity: ≤85%RH
Motor waterproof grade	IP56
Noise	≤80dB
Cutting power	4000W
Size	660x1210x1460mm
Weight	Around 550kg
Power supply	380V, 50Hz
