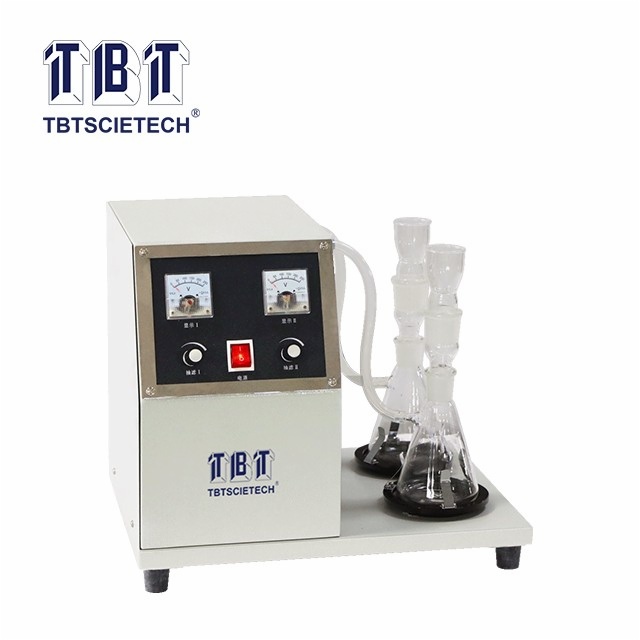

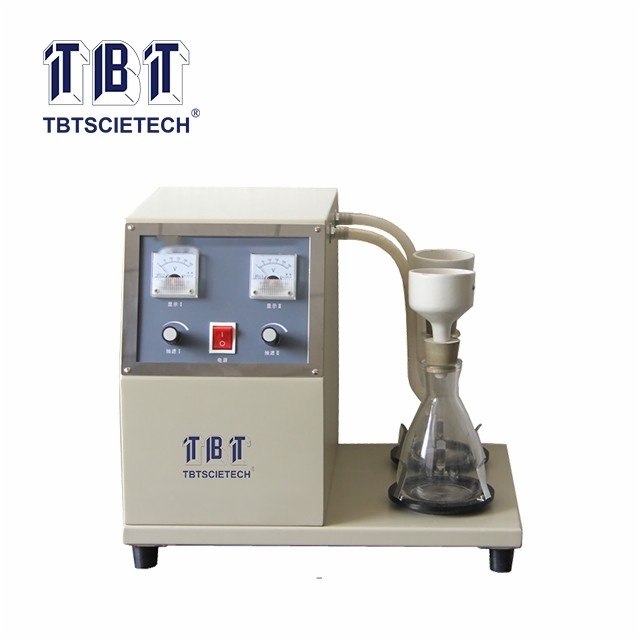

    Bitumen Solubility Tester TBT-0607

    • Bitumen Solubility Tester
    • Bitumen Solubility Tester
    Bitumen Solubility Tester
    Bitumen Solubility Tester
    Item Code:TBT-0607 Features:TBT-0607 is designed referring to ASTM D2042 Standard Test Method for Solubility of Asphalt Materials in Trichloroethylene.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-0607 is designed referring to ASTM D2042 Standard Test Method for Solubility of Asphalt Materials in Trichloroethylene. It is used to determine the the solubility of residue of asphalt and emulsified asphalt after evaporation (It is not suitable to determine the solubility of modified asphalt).

    ASTM D2042

    1.Desktop structure;
    2.It can do parallel test for two samples at a time. High efficiency;
    3.Automatic suction. The rate can be adjusted continuously.

    Working mode

    Double lines

    Suction method

    Suction pump. Rate can be adjusted continuously

    Film

    Fiberglass film. Minimum size 0.65μm

    Solvent

    Trichloroethylene

    Maximum power consumption

    100W

    Working temperature & humidity

    -10℃~+30℃, ＜85%RH

    Size

    420×320×360mm

    Weight

    8.8kg

    Power supply

    220V, 50Hz
