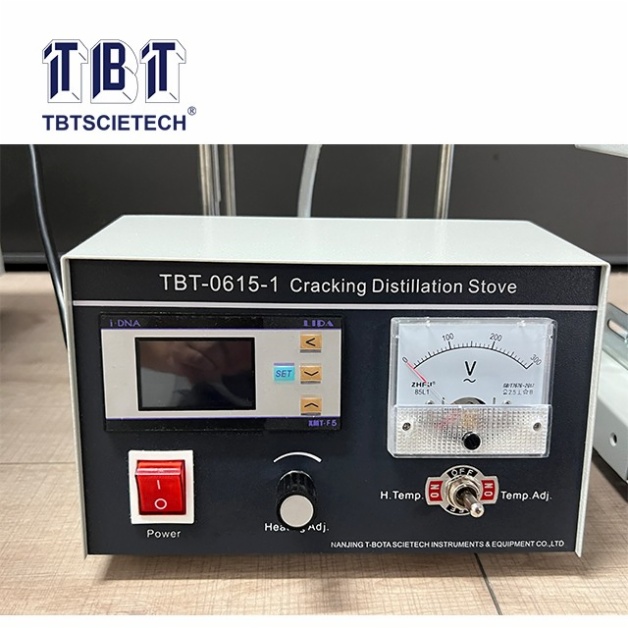

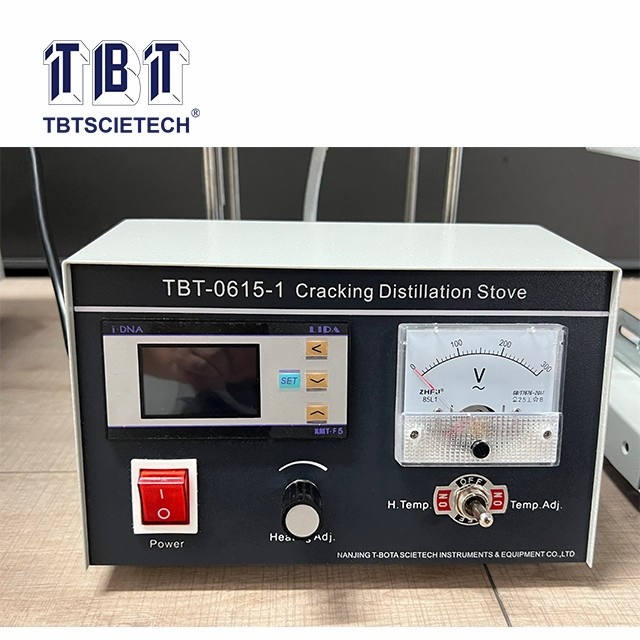

    Cracking Distillation Stove TBT-0615-1 (work with TBT-0615)

    • Cracking Distillation Stove
    • Cracking Distillation Stove
    • Cracking Distillation Stove
    Cracking Distillation Stove
    Cracking Distillation Stove
    Cracking Distillation Stove

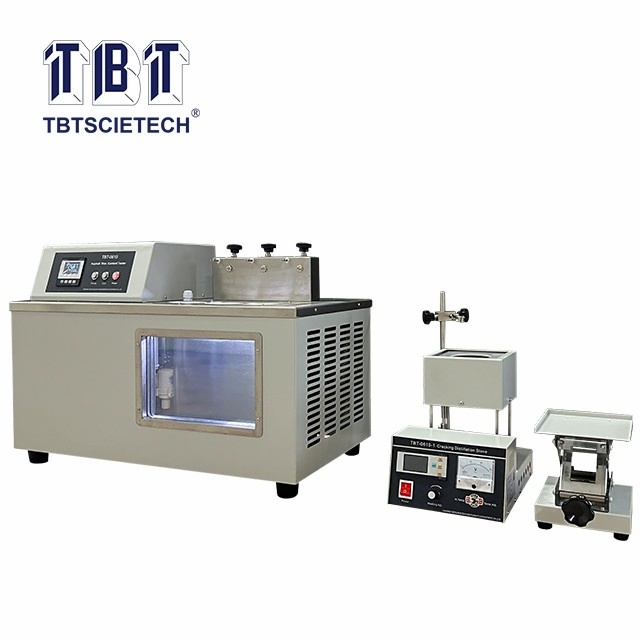

    Item Code:TBT-0615-1 (work with TBT-0615) Features:TBT-0615-1 is the specified equipment and matched with the TBT-0615 Wax Content Tester, it also suitable for the needs of petroleum products.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-0615-1 is the specified equipment and matched with the TBT-0615 Wax Content Tester, it also suitable for the needs of petroleum products.

    ASTM D6307

    1.It adopts the mode of electric heating, and the constant temperature can be controlled the range of 550℃±10℃. The heating power can be adjusted continuously to meet the needs of the distillation of samples;

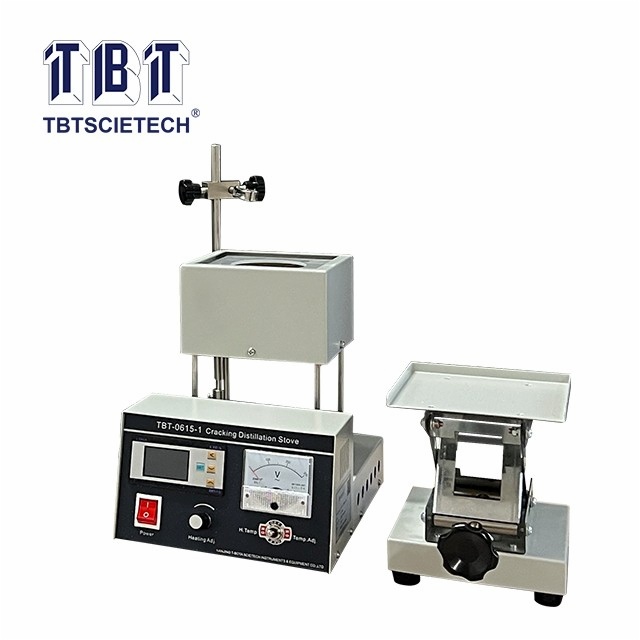

    2.It adopts heating furnace and elevator-platform. Two parts are independently which is convenient to use;
    3.The housing washer of heating furnace adopts humanized design of heat insulation and reduce the effect of the heat radiation to the operator;
    4.The temperature controller adopts LCD display, single chip control technology. Advanced technology and small overshoot. It can reach to 550℃±10℃ constant temperature, which only needs 15 minutes at normal atmospheric temperature.

    Heating control

    Solid adjustable pressure model can be adjusted continuously

    Constant temperature control

    550℃±10℃

    Total power consumption

    ≤2100W

    Working temperature & humidity

    ≤35℃, ≤85%RH

    Size

    Heating furnace: around 220x330x400mm

    Elevator-platform: around 150x1750x120mm

    Power supply

    220V, 50Hz
