TBT-750DRH is used for dispersing, mixing, emulsifying and homogenizing.

It is widely used in the dispersion, mixing, emulsification, homogenization of liquid materials in factories, scientific research institutions, universities, etc.

1. The three-phase asynchronous motor with higher safety performance, low noise, sufficient power, and can run for a long time, easily meeting a variety of semi-production requirements of high-demand dispersion and mixing;

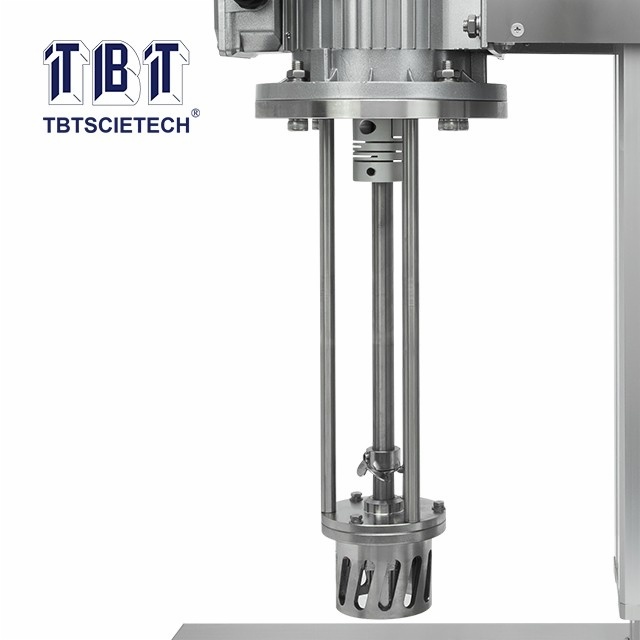

2. The emulsifying head is finely processed, running more smoothly and lastingly, and better discharging effect;

3. The base is made of stainless steel to avoid rust due to material contamination during use;

4. Easy to clean after use.

Maximum speed	10000rpm/min
Speed regulation mode	Stepless speed regulation
Emulsification working head, shaft length	300mm
Stator head diameter	64mm
Capacity	10L
Lifting system	Electric lifting platform, stable lifting
Lifting stroke	300mm
Frequency conversion speed regulation	750W inverter
Size	420320650mm
Weight	30kg
Power supply	220V, 50Hz

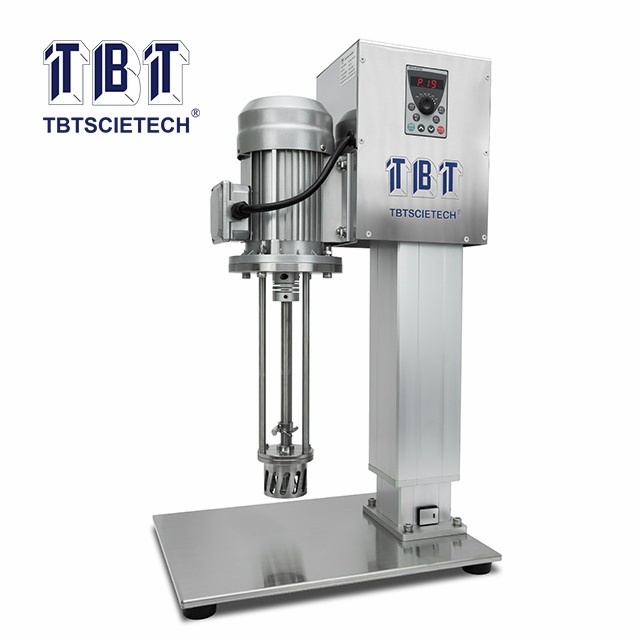

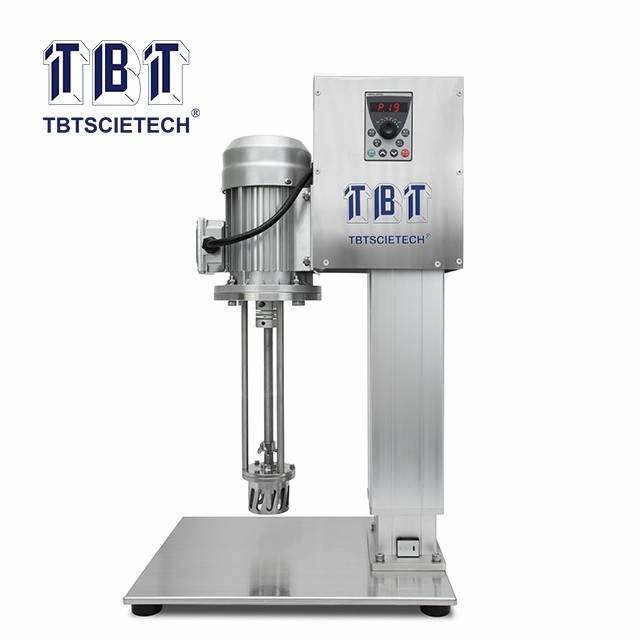

High Shear Emulsifier TBT-750DRH
