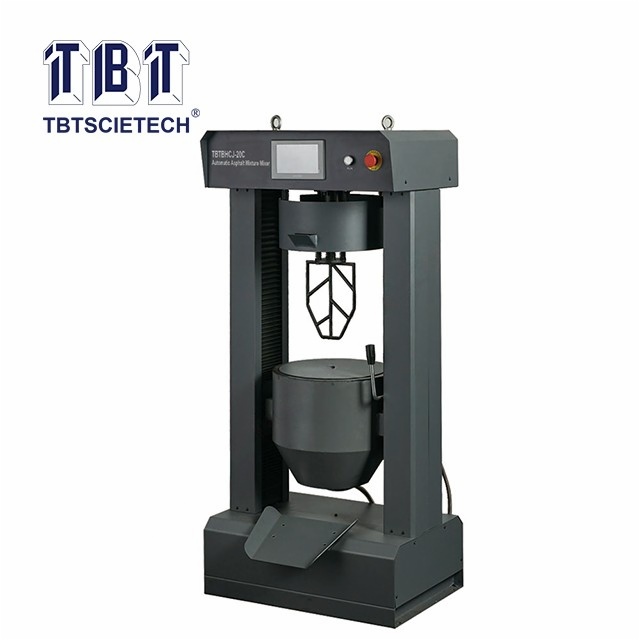

    Automatic Asphalt Mixture Mixer TBTBHCJ-20C

    Automatic Asphalt Mixture Mixer
    Item Code:TBTBHCJ-20C Features:TBTBHCJ-20C adopts vertical mixing design, rigid structure and touch screen controller.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTBHCJ-20C adopts vertical mixing design, rigid structure and touch screen controller.
    Its 20liter large capacity mixing chamber can be used to produce samples for performing tests of Marshall stability, gyratory compaction, prismatic asphalt specimen compaction via shear box compactor.
    It is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates.

    1. Touch screen controller for easy operation;
    2. The screen can display the temperature and time in real time;
    3. The mixing temperature can be set from room temperature to 250℃, which meets the temperature requirements of cold/warm/hot mixing.

    Mixing volume

    20 liters

    Speed of mixing paddle

    Revolution 47 times/min; rotation 76 times/min

    Temperature control range

    Room temperature~250℃

    Temperature control accuracy

    ±3℃

    Time control range

    0~9999 seconds

    Time control accuracy

    ±1 second

    Mixing motor

    380V, 50Hz, 750W

    Dimension

    710x460x1500mm

    Weight of the whole machine

    210kg
