TBTHVS-1000Z Digital Micro Vickers Hardness Tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements.

It is suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2

1.With digital measuring eyepiece;

2.Support display the test mode, test force, indentation length, dwell time, test numbers and conversion scale;

3.Automatically get the hardness value and show on the screen;

4.Test results can be printed out by the built-in printer;

5.RS232 interface connect to computer;

6.Support use optional Knoop indenter to measure Knoop hardness;

7.Can be equipped with LCD video measuring device and CCD image automatic measuring system.

Test force	gf	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test range		1HV~2967HV
Hardness resolution		0.1HV
Test mode		HV/HK
Loading method		Automatic (loading/dwell/unloading)
Turret		Automatic shifting
Conversion scale		HK, HRA, HRBW, HRC, HRD, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW
Data output		Built-in printer, RS232 interface
Eyepiece		10× digital measuring eyepiece
Objective		10× (observe), 40× (measure)
Total magnification		100×, 400×
Effective field of view		200μm
Min. measuring unit		0.06μm
Dwell time		0~60s
Light source		Halogen lamp
X-Y test table		Size: 100×100mm; travel: 25×25mm; resolution: 0.01mm
Max. sample height		90mm
Throat depth		100mm
Power supply		AC220V, 50Hz
Dimension		Product: 480×325×545mm Package: 600×360×800mm
Weight		Net weight: 31kg Gross weight: 44kg

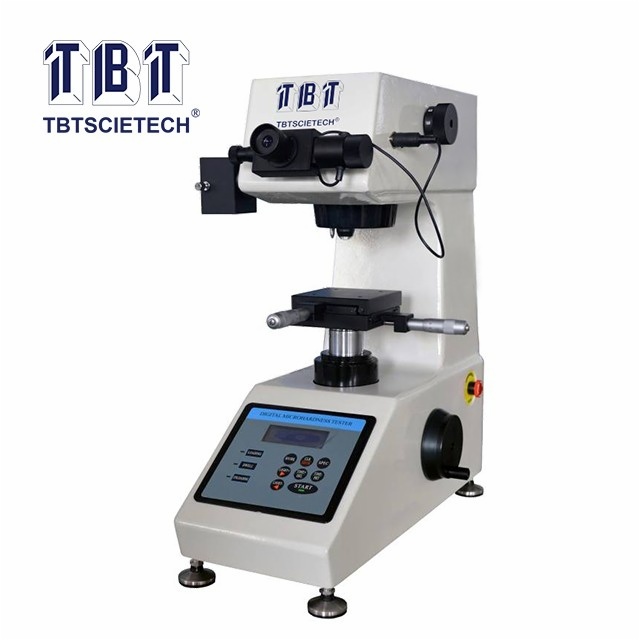

Digital Micro Vickers Hardness Tester TBTHVS-1000Z
