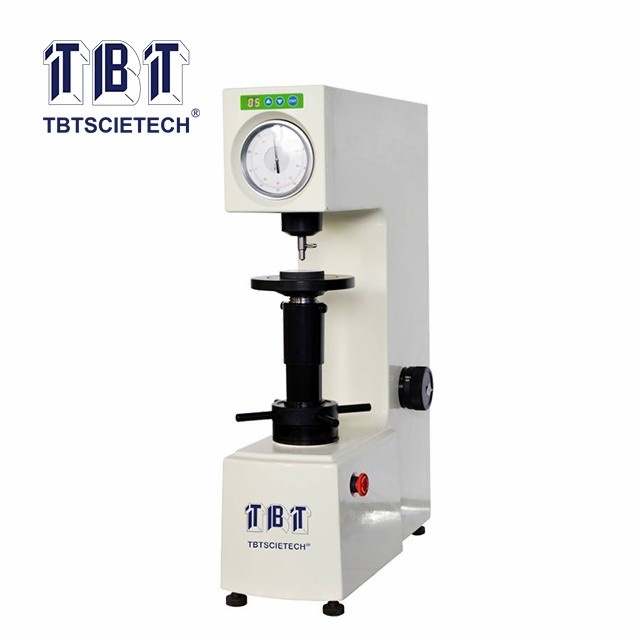

    Motorized Rockwell Hardness Tester TBTHR-150DT

    Motorized Rockwell Hardness Tester
    Item Code:TBTHR-150DT Features:TBTHR-150DT Motorized Rockwell Hardness Tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTHR-150DT Motorized Rockwell Hardness Tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel.
    It is suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.

    ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2

    1.Support select the dwell time;
    2.Besides setting zero to dial, there is no man-made error;
    3.High sensitivity and stability.

    Initial test force

    10kgf (98.07N)

    Total test force

    60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

    Indenter

    Diamond Rockwell indenter

    Φ1.5875mmBall indenter

    Loading method

    Automatic (loading/dwell/unloading)

    Hardness reading

    Dial

    Hardness resolution

    0.5HR

    Dwell time

    2~60s

    Max. sample height

    185mm

    Throat depth

    165mm

    Power supply

    AC220V, 50Hz

    Dimension

    Product: 520×215×700mm

    Package: 650×370×950mm

    Weight

    Net weight: 78kg

    Gross weight: 100kg
