TBTXHBT-3000ZIII Fully Automatic Three Indenters Digital Brinell Hardness Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTXHBT-3000ZIII Fully Automatic Three Indenters Digital Brinell Hardness Tester adopts casting shell with strong rigidity and precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact.

It is suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2

1.10 level of test force, 13 Brinell hardness test scales, suitable for different kinds of metal materials;

2.With three indenters and two objectives, no need to change the indenters when testing different samples;

3.With rigorous optical structure and high magnification, it makes the indentation observed clearly;

4.Automatically select the corresponding indenter and objective for measurement;

5.Adopts the integrated design of hardness tester and panel computer;

6.With CCD image measuring system, it can preset the test force dwell time, adjust intensity of light source, show the indentation length, hardness value, test range and test number etc.;

7.The software has the function of calibration, manual fine tuning and set up and down limit etc;

8.Conversion scales of different kinds of hardness;

9.Test result can be saved as WORD or EXCEL report and can be printed out;

10.With USB port, VGA interface and network interface, it can connect to the internet and other devices for more optional functions.

Test force	kgf	62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
	N	612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test range		3.18~653HBW
Loading method		Automatic (loading/dwell/unloading)
Hardness reading		12 inch touch screen, automatic measuring
Micro computer		CPU: Intel I5, memory: 8G, SSD: 128G
CCD pixel		3.00 million
Conversion scale		HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBS, HBW
Data output		3×USB, 1×VGA, 1×LAN
Turret		Automatic recognition and shifting (three indenters, two objectives)
Objective		1×, 2×
Effective field of view		1×: 6mm, 2×: 3mm
Min. measuring unit		1×: 4.6μm, 2×: 2.3μm
Dwell time		0~99s
Max. sample height		290mm
Throat depth		150mm
Power supply		AC220V, 50Hz
Dimension		Product: 690×310×1000mm Package: 830×490×1300mm
Weight		Net weight: 200kg Gross weight: 230kg

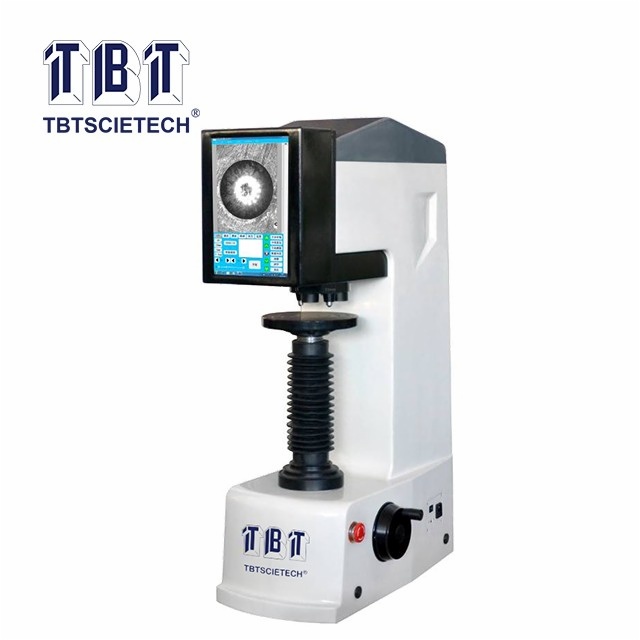

TBTXHBT-3000ZIII Fully Automatic Three Indenters Digital Brinell Hardness Tester TBTXHBT-3000ZIII
