TBT560-ARHT Automatic Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features, which is suitable for the Rockwell and superficial Rockwell hardness test.

It is suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.

ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2

1.Support for all the Rockwell and superficial Rockwell scales;

2.Support for conversion scales of different kinds of hardness;

3.With arc correction function;

4.Touch screen display and operation, dynamically display the working state of the lifting screw & the indenter;

5.Press operation for the test table, fast rising or dropping;

6.One key to complete the rising of the specimen, loading dwell and unloading of the indenter, display the hardness value, homing of the test table;

7.With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be printed, and with a RS232 interface users can connect it to the computer for output.

Initial test force	3kgf (29.42N), 10kgf (98.07N)
Total test force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell indenter, Φ1.5875mm ball indenter
Loading method	Automatic (Loading/Dwell/Unloading)
Operation	Automatic rising and homing, One key to complete
Hardness reading	Touch screen
Test scale	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Data output	Built-in printer, RS232 interface
Hardness resolution	0.1HR
Dwell time	0~99s
Max. sample height	310mm
Throat depth	150mm
Power supply	AC220V, 50Hz
Dimension	Product: 535×280×890mm Package: 820×460×1170mm
Weight	Net weight: 80kg Gross weight: 100kg

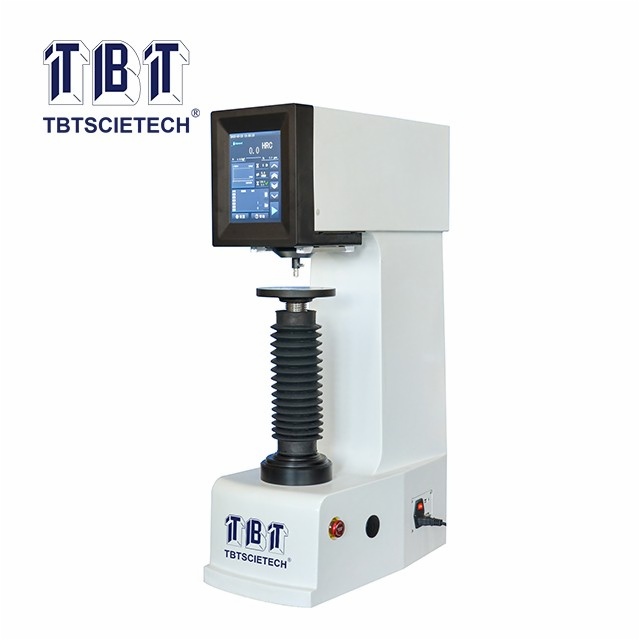

Automatic Rockwell Hardness Tester TBT560-ARHT
