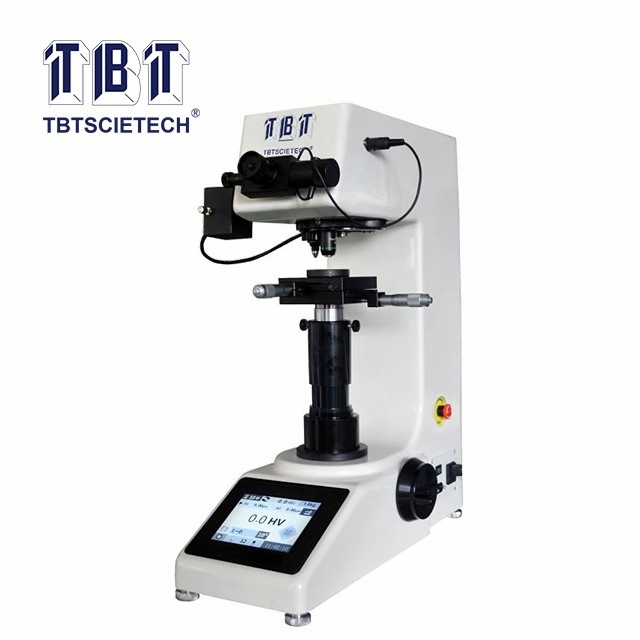

    Digital Vickers Hardness Tester TBTMHV-10Z

    Digital Vickers Hardness Tester
    Item Code:TBTMHV-10Z Features:TBTMHV-10Z Digital Vickers Hardness Tester is a high-tech and new product combining the optics, mechanic and electrics features.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTMHV-10Z Digital Vickers Hardness Tester is a high-tech and new product combining the optics, mechanic and electrics features.
    It is suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

    ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2

    1.Adopts high resolution color touch screen;
    2.Load cell control system improves the precision of the test force;
    3.Automatic calculation of maximum, minimum and average value;
    4.The data can be arbitrary deleted and printed out;
    5.Support display the test force, indentation length, dwell time, conversion scale, time;
    6.RS232 interface connect to computer;
    7.Can be equipped with LCD video measuring device and CCD image automatic measuring system.

    Test force

    kgf

    0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf

    N

    2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N

    Test mode

    HV/HK

    Test range

    1HV~2967HV

    Hardness resolution

    0.1HV

    Loading method

    Automatic (loading/dwell/unloading)

    Turret

    Automatic shifting

    Data output

    Built-in printer, RS232 interface

    Hardness reading

    Color touch screen, data can be saved

    Conversion scale

    HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

    Eyepiece

    10× digital measuring eyepiece

    Objective

    10× (observe), 40× (measure)

    Total magnification

    100×, 400×

    Effective field of view

    10×: 800μm, 40×: 200μm

    Min. Measuring unit

    10×: 0.25μm, 40×: 0.06μm

    Dwell time

    0~60s

    Light source

    Halogen lamp

    X-Y test table

    Size: 100×100mm; travel: 25×25mm; resolution: 0.01mm

    Max. sample height

    170mm

    Throat depth

    130mm

    Power supply

    AC220V, 50Hz

    Dimension

    Product: 530×280×630mm

    Package: 620×450×760mm

    Weight

    Net weight: 35kg

    Gross weight: 47kg
