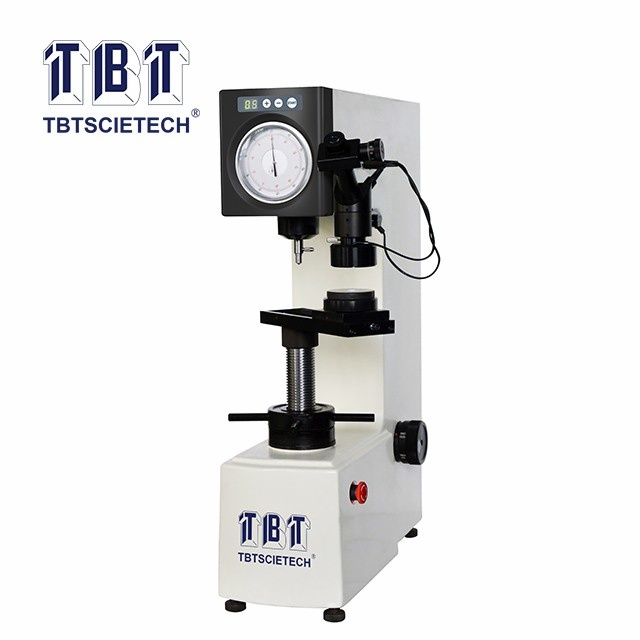

    Brinell Rockwell & Vickers Hardness Tester TBTHBRV-187.5

    Brinell Rockwell & Vickers Hardness Tester
    Item Code:TBTHBRV-187.5 Features:TBTHBRV-187.5 Brinell Rockwell & Vickers Hardness Tester is a multi-functional hardness tester that is the popular machine for industrial enterprises and scientific research institutes.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTHBRV-187.5 Brinell Rockwell & Vickers Hardness Tester is a multi-functional hardness tester that is the popular machine for industrial enterprises and scientific research institutes.
    It is suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
    ISO 6508, ISO 6506, ISO 6507, ASTM E18, ASTM E10, ASTM E92, JIS Z2243, JIS Z2244, JIS Z2245, GB/T 230.2,GB/T 231.2, GB/T 4340.2
    1.Support Brinell Rockwell & Vicker three test modes;
    2.Test force loading, dwell, unload adopts automatic system;
    3.7 level of test forces.

    Rockwell test force

    60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

    Brinell test force

    30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)

    Vickers test force

    30kgf (294.2N), 100kgf (980.7N)

    Indenter

    Diamond Rockwell indenter

    Diamond Vickers indenter

    Φ1.5875mm, Φ2.5mm, Φ5mm ball indenter

    Hardness reading

    Rockwell: Dial

    Brinell & Vickers: check hardness table

    Magnification

    Brinell: 37.5×, Vickers: 75×

    Min. measuring unit

    Brinell: 4μm, Vickers: 2μm

    Hardness resolution

    Rockwell: 0.5HR,

    Brinell & Vickers: check hardness table

    Dwell time

    2~60s

    Max. sample height

    Rockwell: 185mm, Brinell: 100mm, Vickers: 115mm

    Throat depth

    165mm

    Power supply

    AC220V, 50Hz

    Dimension

    Product: 520×240×700mm

    Package: 650×370×950mm

    Weight

    Net weight: 80kg

    Gross weight: 105kg
