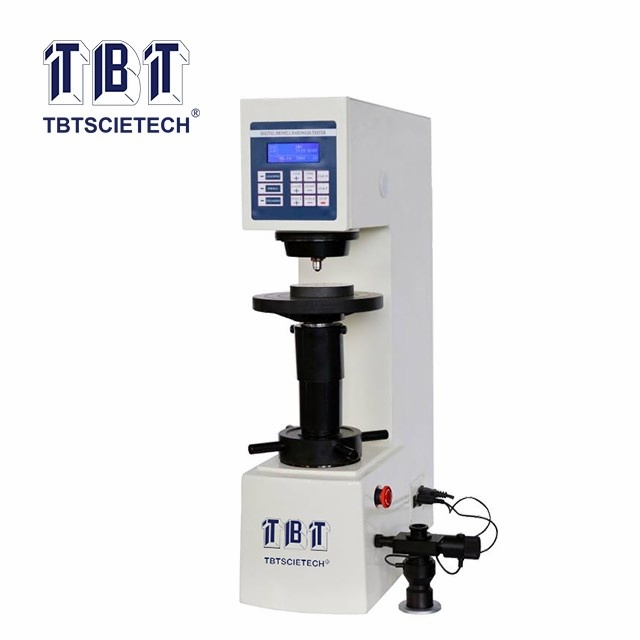

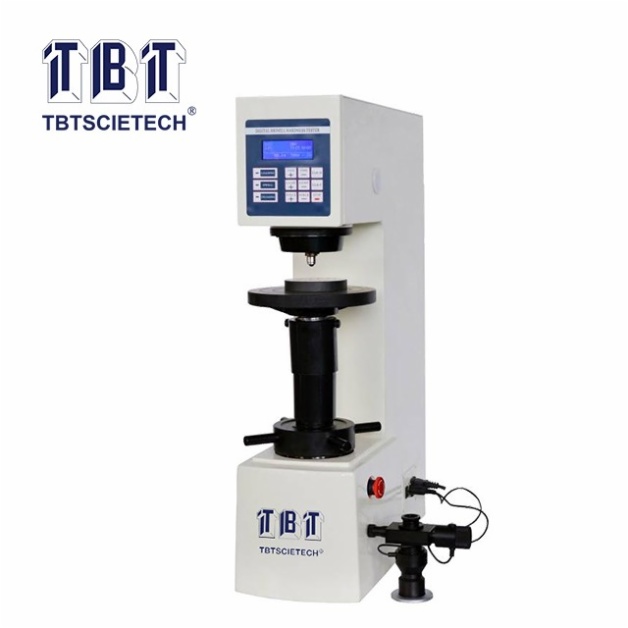

    Digital Brinell Hardness Tester TBTMHB-3000

    Digital Brinell Hardness Tester
    Item Code:TBTMHB-3000 Features:TBTMHB-3000 Digital Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTMHB-3000 Digital Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system.
    It is suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

    ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2

    1.Adopts the motorized test force application without weights;
    2.0.5‰ accuracy compression sensor;
    3.CPU control system to automatically compensate the test force lost during the test;
    4.External digital measuring microscope;
    5.Support display the hardness value, test force, dwell time and indentation length;
    6.Support automatically get the hardness value and shows on the screen.

    Test force

    kgf

    62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf

    N

    612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N

    Test range

    3.18~653HBW

    Hardness reading

    LCD display

    Hardness resolution

    0.01HBW

    Microscope

    20× digital measuring microscope

    Effective field of view

    6mm

    Min. measuring unit

    0.001mm

    Dwell time

    0~60s

    Max. sample height

    205mm

    Throat depth

    135mm

    Power supply

    AC220V, 50Hz

    Dimension

    Product: 545×235×755mm

    Package: 650×435×1020mm

    Weight

    Net weight: 130kg

    Gross weight: 160kg
