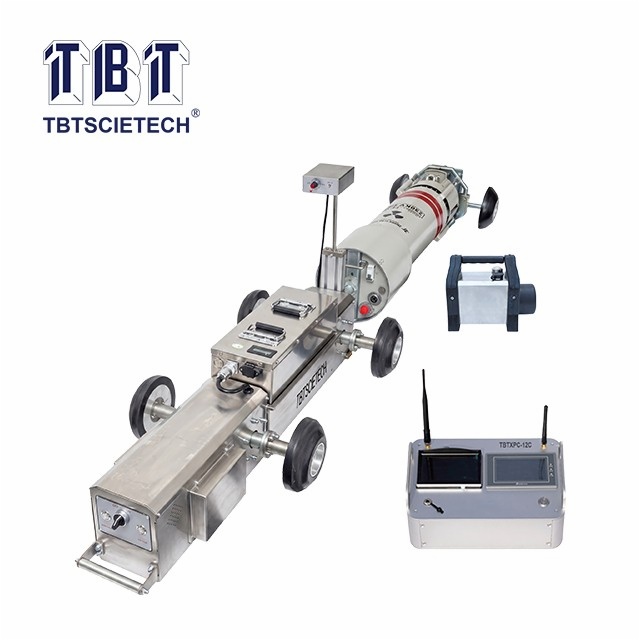

TBTXPC-12C is an advanced X-ray pipeline crawler designed to optimize non-destructive testing (NDT) efficiency while reducing physical labor for operators. By integrating the user-friendly operation of magnetic positioning with the intuitive, real-time visualization of video positioning into a single unit, this crawler delivers enhanced adaptability for a broader range of inspection environments.

1.Frequency-discrimination positioning: the positioning control adopts advanced frequency-discrimination technology, which provides robust anti-interference capability and significantly improves positioning accuracy;

2.Optimized X-ray generator: the high-voltage coils are manufactured with premium imported wires. The system utilizes a specialized X-ray tube with 360°×40° radiation angle (compared to the conventional 360°×30°), which delivers a more uniform field intensity and simplifies radiographic exposure operations;

3.Consistent film density: equipped with a KV adjustment function and an integrated constant-voltage power system, the crawler ensures highly uniform film density across all X-ray exposures during operation;

4.Energy-efficient drive with smart protection: driven by an electronic speed-regulating device, the motor operates at constant torque and constant current, reducing energy consumption by 40%. It also features motor overcurrent protection, a soft-start function, and a low-speed positioning mode, which collectively guarantee pinpoint accuracy while extending the equipment's operational lifespan;

5.High-performance power supply: the system utilizes high-quality battery packs to deliver a highly efficient, stable, and dependable power source for the entire equipment.

Applicable pipeline diameter	355~1200mm
Drive type	4-wheel drive
Moving distance	5km
Speed	15m/min
Turning radius	≥10D
Max. gradeability	30° (depend on pipeline real situation)
Positioning method	Magnetic medium control
Positioning accuracy	±3mm
Battery capacity	20Ah
Battery weight	15.5kg
Full charge exposure	110min
Maximum penetration	30mm
X-ray beam angle	360°×40° glass tube
Exposure time	0~5min
Generator voltage	150~250kV
Generator size	Diameter 245x990mm
Generator weight	25kg
Working temperature & humidity	-20~75℃; ≤90% RH
Insulation	SF6 gas
