Automatic Vickers Hardness Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTMHV-10ZV2.0/50ZV2.0 Automatic Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on.

It is suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

1.Automatic tested by the computer;

2.Support automatic reading and manual reading;

3.Accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films;

4.Can shoot metal surface morphology and taking fixed rate printing etc.

Model		TBTMHV-10Z/V2.0	TBTMHV-50Z/V2.0
Test force	gf	0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf	0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
	N	2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N	4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test range		1HV~2967HV
Loading method		Automatic (loading/dwell/unloading)
Turret		Automatic shifting
Conversion scale		HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Data output		Built-in printer Word or Excel report with curve chart
Hardness reading		Indentation display and automatic measuring on PC
Eyepiece		10× digital measuring eyepiece
Objective		10× (observe), 40× (measure)	10× (observe), 20× (measure)
Total magnification		100×, 400×	100×, 200×
Microscope resolution		0.25μm, 0.06μm	0.25μm, 0.13μm
Dwell time		0~60s
Light source		Halogen lamp
Motorized X-Y test table		Size: 110×110mm; travel: 50×50mm; resolution: 0.002mm
Max. Sample height		165mm
Throat depth		130mm
Power supply		AC220V, 50Hz
Dimension		Product: 530×280×630mm Package: 620×450×760mm
Weight		Net weight: 35kg Gross weight: 47kg

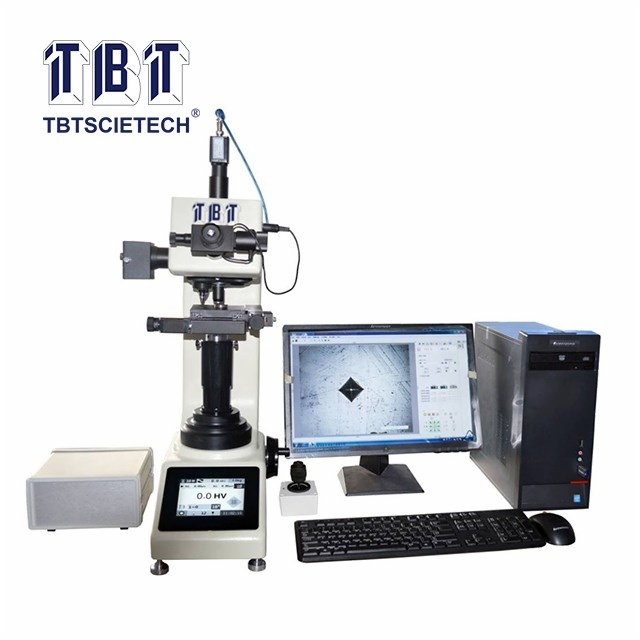

Automatic Vickers Hardness Tester TBTMHV-10ZV2.0/50ZV2.0
