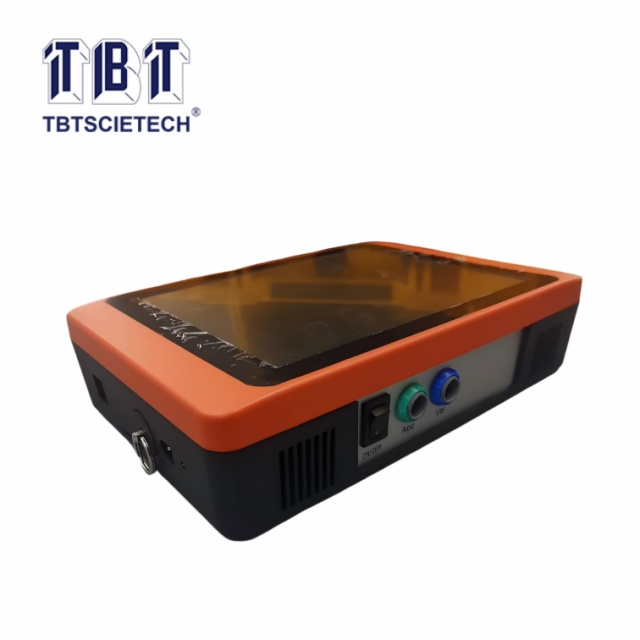

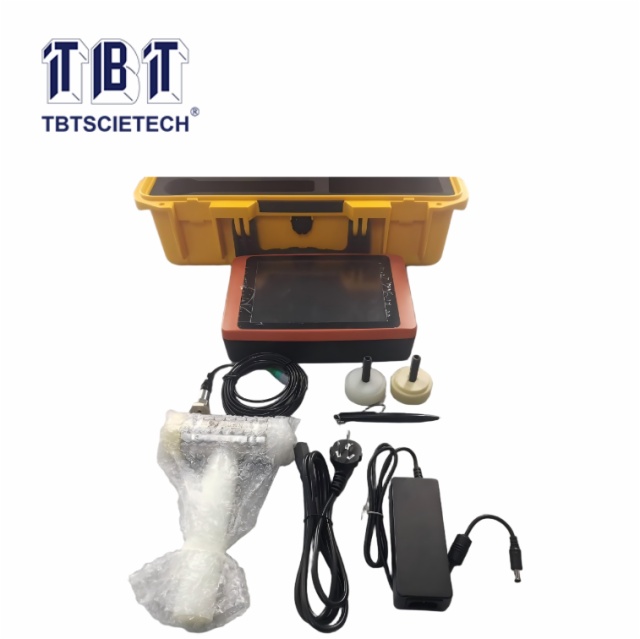

Low-Strain Dynamic Tester for Foundation Piles (PIT-Pile Integrity Tester) Manufacturer

TBTYH-LWP is mainly used in low strain (transient) pile testing and shear wave measurement.

Feature:

1.High integration,high reliability and low noise.

2. Windows operating system, 8.4-inch high brightness LCD screen, full touch operation.

3. SD card U disk can be transferred to storage directly , and about 250000 piles data can be stored in the machine to realize massive data storage.

4. Automatic equalization for analog quantity. Eliminate signal drift.

5.Equipped with accelerometer and velocity detector at the same time.

6. Automatically realize the functions of continuous acquisition, superposition and balance adjustment

7. Multi time base function, while ensuring the accuracy of time domain and frequency domain analysis

8. AC / DC dual-purpose, DC power supply can work for more than 8 hours

9. Online upgrade of main control program.Feature:

Technical Specification:

System	WINCE operating system;ARM920T core
Display mode:	24 bit standard true color, 800x600 resolution, 8.4-inch TFT standard LCD
Input interface:	standard touch screen input, USB mouse.
Storage mode:	SD card and electronic disk. The minimum number of stored files is 500000.
Transfer storage mode:	Transfer storage through USB through external interface. Support hot plug of USB flash disk.
Sampling length	1K,2K,4K,8K
Trigger mode	Channel trigger,External trigger,steady state trigger
Sampling interval	5-32767 μ S continuously adjustable.
Sampling resolution	16bits AD
Built-in battery	12V15.5Ah ,rechargeable li-battery working for more than 7 consecutive hours
External power supply	DC15V4A charger
Operating temperature	-10 ℃ to 50 ℃
Amplification factor	X4,X1,X10,X100,X1000
Volume and weight	230 x 170 x58 ( mm ) , 2.1Kg。
