Rock Triaxial Apparatus Manufacturer

TBTRTA-1000B adopts servo control and displays axial loading force (kN) and confining pressure (MPa) values via triaxial rock software. It also features confining pressure stabilization and adjustment capabilities. (It is equipped with a high-precision pressure regulating valve; when the confining pressure passively increases, it can be manually reduced, and when the confining pressure decreases due to external factors, it can be manually increased.) It can quickly complete triaxial compression tests on rocks and dynamically display the three main indicators: axial test force, confining pressure, and axial deformation.

It is suitable for assessing the engineering properties of bedrock or surrounding rock under engineering structure loads, providing reliable data for engineering geological evaluation and engineering design.

1.The triaxial chamber applies confining pressure to the rock. The compact and lightweight triaxial pressure chamber allows for easy removal of the sample by pulling out the push plate and manually detaching the lower pressure plate, enabling the replacement of a new sample for triaxial testing;

2.A high-pressure loading system applies pressure to the triaxial chamber with servo control for maintaining the pressure. The advanced, high-precision software digital display shows the loading pressure, peak value, and loading speed. Under the adjustment of the servo control valve, the confining pressure actuator is speed-regulated to apply pressure and maintain load. The loading speed is adjustable, and the software can display and save the loading process curves and data in real time;

3.Computer automatic control ensures that all test parameters are controlled, stored, measured, displayed, processed, and graphed by the computer;

4.Overload protection is provided; when the force or displacement exceeds the rated value of the testing machine, it automatically unloads and stops the test.

Maximum axial load range	1000kN
Load measurement range	5kN~1000kN
Load measurement accuracy	±0.5%F.S
Load measurement resolution	0.1kN
Stress control range	1~5kN/S
Loading method	Electro-hydraulic, fully automatic computer servo control loading, with overload protection (3%) and piston limit protection
Control method	Fully automatic computer servo control loading, all test data are automatically collected and stored by microcomputer data acquisition system
Displacement measurement range	0~50mm
Displacement measurement accuracy	±0.25%F.S
Displacement measurement resolution	0.001mm
Axial load resolution	1/100000
Axial stroke	0~100mm
Axial displacement sensor	Range 0-500mm
Axial displacement sensor error	0.2%F.S
Confining pressure measurement range	0.1~20MPa
Confining pressure measurement accuracy	±0.5%F.S
Confining pressure measurement resolution	1 kPa
Limit control	Automatic protection when axial force, axial travel, and other parameters reach their limit values
Sample size	Φ50 x 100 mm
Main unit size	1000 mm x 900 mm x 1600 mm (L x W x H)
Hydraulic power source size	1200 x 700 x 1100 mm (L x W x H)
Weight	1300 kg
Power supply	380V, 50Hz, 3kW

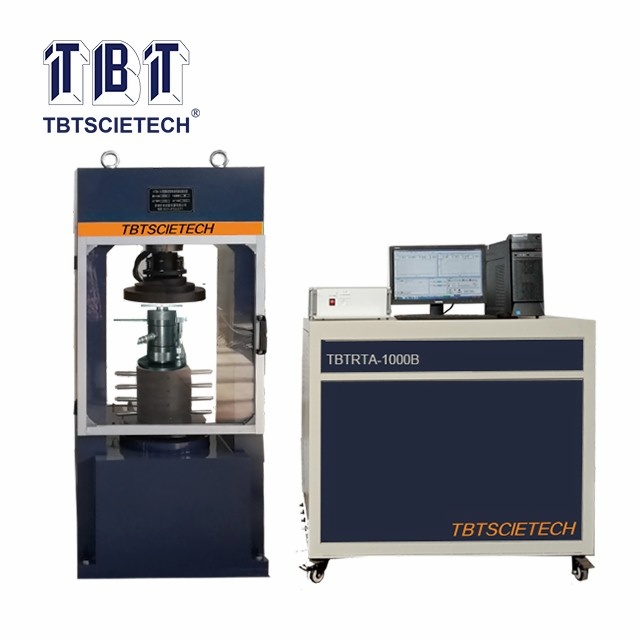

Rock Triaxial Apparatus TBTRTA-1000B
