Introduction:

This automatic grinding machine is designed to grind & polish end surfaces of cube & cylinder specimens for concrete or rocks.

The 2 movable grinding heads are equipped with Φ200 diamond grinding wheels.

The cube and cylinder specimens can be easily locked on the table and the grinding head can be laterally moved either manually or automatically in both directions, move speed adjustable.

Main Features:

easy and precise grinding of specimens, high productivity with large base table for for grinding concrete cubes or cylinders.

ergonomic compact bench model to safe laboratory space.

improved reliability with cooling system by main water supply or recirculating .

Specifications:

Motor power for Work table	0.75KW, speed 1430 rpm
Power for Grinding head	Y80-4, 1.1KW×2, speed 2800 rpm
Grinding mode	parallel grinding of both surface ends Simultaneously
Grinding head control mode	Manual, automatic, switchable
Automatic grind feeding speed	0.04～0.2mm (adjustable)
Grinding application specimen range	cube: 50×50×50 ~ 150×150×150mm
Grinding application specimen range	cylinder: Φ50 ~ Φ150
Surface fineness	Ra3.2 (per roughness standard of machining)
Flatness at Standard precision	within range of 100 test specimen, error ≤0.04mm, verticality ≤0.1mm
Grinding wheel	￠200×￠19×40mm, 2pcs
Cooling device	water cooling. Liquid nitrogen cooling, optional.
Dimensions	1450 × 1400 × 1200mm LWH
Weight	600 KGS

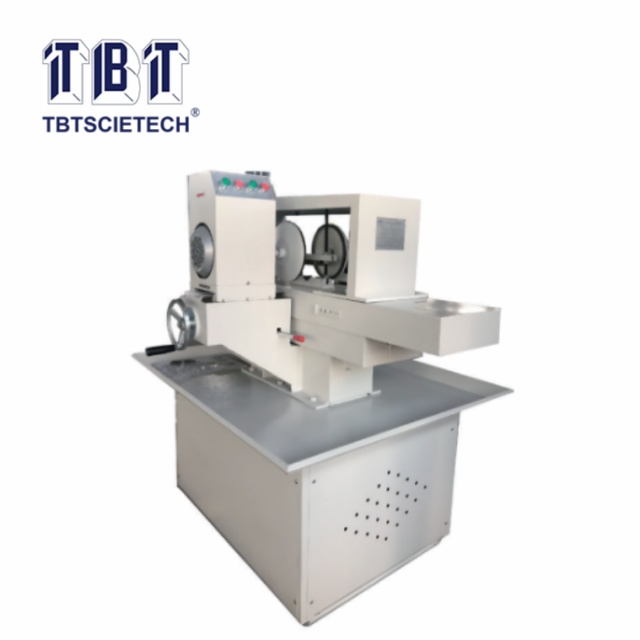

Double-faced Grinding Machine TBTMP200
